Home - Products - Engine System - Cylinder Head - American Car - P4AT DDR5 ZSD-422 CYRA Engine Cylinder Head for Ford Transit Mazda BT-50 1740108 908758

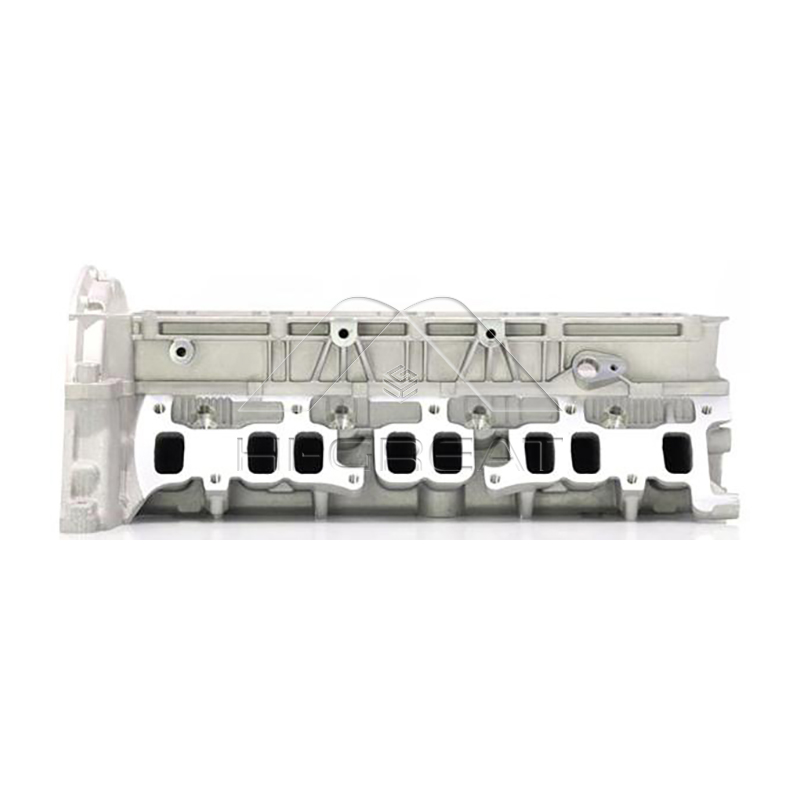

P4AT DDR5 ZSD-422 CYRA Engine Cylinder Head for Ford Transit Mazda BT-50 1740108 908758

Engine Code:	P4AT DDR5 ZSD-422 CYRA
HG No:	HGCH0162
Car Series:	American Car
Car Brand:	FORD
Car Model:	Ford Transit Mazda BT-50

Inquire Now Next Product

Product Description

OEM NO:1740108 LR029711 LR037049 U2Y0-10-YF0 U2Y0-10-100A 1717606 BK3Q6C032AD

REF NO:908758

Applicable Models:

Ford

RANGER (TKE) 2.2 TDCi GBVAJQJ,T22DD0P 2015- 2198cc 118kW Pickup

RANGER (TKE) 2.2 TDCi ENQJ,GBVAJQJ 2011- 2198cc 110kW Pickup

RANGER (TKE) 2.2 TDCi ENPF,GBVAJPF 2011- 2198cc 88kW Pickup

RANGER (TKE) 2.2 TDCi ENQW,GBVAJQW 2011- 2198cc 92kW Pickup

RANGER (TKE) 2.2 TDCi 4x4 GBVAJQJ,T22DD0P 2015- 2198cc 118kW Pickup

RANGER (TKE) 2.2 TDCi 4x4 ENQJ,GBVAJQJ 2011- 2198cc 110kW Pickup

RANGER (TKE) 2.2 TDCi 4x4 ENQW,GBVAJQW 2011- 2198cc 92kW Pickup

TRANSIT Bus (FD_,FB_,FS_,FZ_,FC_) 2.2 TDCi RWD CYRA 2011-2014 2198cc 92kW Bus

TRANSIT Bus (FD_,FB_,FS_,FZ_,FC_) 2.2 TDCi RWD CVRC 2011-2014 2198cc 114kW Bus

TRANSIT Bus (FD_,FB_,FS_,FZ_,FC_) 2.2 TDCi RWD USRA,USRB 2011-2014 2198cc 100kW Bus

TRANSIT Bus (FD_,FB_,FS_,FZ_,FC_) 2.2 TDCi RWD DRRA,DRRB,DRRC 2011-2014 2198cc 74kW Bus

TRANSIT Platform/Chassis (FM_,FN_,FF_) 2.2 TDCi 4x4 CYRB,CYRC 2011-2014 2198cc 92kW Platform/Chassis

TRANSIT Platform/Chassis (FM_,FN_,FF_) 2.2 TDCi RWD CVRA,CVRB,CVRC 2011-2014 2198cc 114kW Platform/Chassis

TRANSIT Platform/Chassis (FM_,FN_,FF_) 2.2 TDCi RWD DRRA,DRRB,DRRC 2011-2014 2198cc 74kW Platform/Chassis

TRANSIT Platform/Chassis (FM_,FN_,FF_) 2.2 TDCi RWD CYRA 2011-2014 2198cc 92kW Platform/Chassis

TRANSIT V363 Bus (FAD,FBD) 2.2 TDCi 4x4 CY24,CYR5 2013-2018 2198cc 92kW Bus

TRANSIT V363 Bus (FAD,FBD) 2.2 TDCi AWD CV24,CVR5 2015-2018 2198cc 114kW Bus

TRANSIT V363 Bus (FAD,FBD) 2.2 TDCi RWD UHR5 2013- 2198cc 99kW Bus

TRANSIT V363 Bus (FAD,FBD) 2.2 TDCi RWD DRR5 2013-2018 2198cc 74kW Bus

TRANSIT V363 Bus (FAD,FBD) 2.2 TDCi RWD CYR5,USR6 2013-2018 2198cc 92kW Bus

TRANSIT V363 Bus (FAD,FBD) 2.2 TDCi RWD CV24,CVR5,UYR6 2013-2018 2198cc 114kW Bus

TRANSIT V363 Platform/Chassis (FED,FFD) 2.2 TDCi 4x4 CV24,CVR5 2013-2018 2198cc 114kW Platform/Chassis

TRANSIT V363 Platform/Chassis (FED,FFD) 2.2 TDCi 4x4 CY24,CYR5 2013-2018 2198cc 92kW Platform/Chassis

TRANSIT V363 Platform/Chassis (FED,FFD) 2.2 TDCi RWD CYR5,USR6 2013-2018 2198cc 92kW Platform/Chassis

TRANSIT V363 Platform/Chassis (FED,FFD) 2.2 TDCi RWD UHR5 2013-2018 2198cc 99kW Platform/Chassis

TRANSIT V363 Platform/Chassis (FED,FFD) 2.2 TDCi RWD CV24,CVR5,CYR5,UYR6 2013- 2198cc 114kW Platform/Chassis

TRANSIT V363 Platform/Chassis (FED,FFD) 2.2 TDCi RWD DRR5 2013-2018 2198cc 74kW Platform/Chassis

TRANSIT V363 Van (FCD,FDD) 2.2 TDCi 4x4 CY24,CYR5 2013-2018 2198cc 92kW Van

TRANSIT V363 Van (FCD,FDD) 2.2 TDCi 4x4 CV24,CVR5 2015-2018 2198cc 114kW Van

TRANSIT V363 Van (FCD,FDD) 2.2 TDCi RWD CYR5,USR6 2013-2018 2198cc 92kW Van

TRANSIT V363 Van (FCD,FDD) 2.2 TDCi RWD CV24,CVR5,UYR6 2013-2018 2198cc 114kW Van

TRANSIT V363 Van (FCD,FDD) 2.2 TDCi RWD DRR5 2013-2018 2198cc 74kW Van

TRANSIT Van (FA_) 2.2 TDCi 4x4 CYRB,CYRC 2011-2014 2198cc 92kW Van

TRANSIT Van (FA_) 2.2 TDCi RWD CVRA,CVRB,CVRC 2011-2014 2198cc 114kW Van

TRANSIT Van (FA_) 2.2 TDCi RWD USRA,USRB 2011-2014 2198cc 100kW Van

TRANSIT Van (FA_) 2.2 TDCi RWD CYRA 2011-2014 2198cc 92kW Van

TRANSIT Van (FA_) 2.2 TDCi RWD DRRA,DRRB,DRRC 2011-2014 2198cc 74kW Van

Land Rover

DEFENDER Cabrio (L316) 2.2 Td4 DT224(PUMA) 2011-2016 2198cc 90kW Open Off-Road Vehicle

DEFENDER Pick Up (L316) 2.2 Td4 DT224(PUMA) 2011-2016 2198cc 90kW Open Off-Road Vehicle

DEFENDER Platform/Chassis (L316) 2.2 Td4 DT224(PUMA) 2011-2016 2198cc 90kW Platform/Chassis

DEFENDER Station Wagon (L316,L315) 2.2 Td4 DT224(PUMA) 2011-2016 2198cc 90kW Closed Off-Road Vehicle

DEFENDER Station Wagon (L316,L315) 2.2 Td4 DT224(PUMA) 2015-2016 2198cc 110kW Closed Off-Road Vehicle

Mazda

BT-50 II Pickup (B22,B32,UP,UR) 2.2 MZ-CD P4-AT 2015- 2198cc 92kW Pickup

BT-50 II Pickup (B22,B32,UP,UR) 2.2 MZ-CD 4WD P4-AT 2012- 2198cc 92kW Pickup

Cylinder Head Structure diagram

3.0TDI 1KD-FTV Engine 11101-30030 11101-30050 Cylinder Head Assembly for Toyota Hilux Land Cruiser

The image shows the detailed construction of a cylinder head assembly, a key component of an internal combustion engine that houses precision parts controlling intake and exhaust gas flow within the combustion chamber.

Key elements include the camshaft, which actuates the valve rocker arms through the rocker shaft, transferring motion to open and close the valves at precise timing intervals. The valve clearance adjusters ensure optimal valve lash for consistent performance and durability, while the valve springs and valve retainers maintain proper valve seating during engine operation.

Additional features, such as the stud holes for securing the head to the engine block and the housing for the thermostat, support structural integrity and cooling system integration. Altogether, these components enable efficient combustion, improved airflow dynamics, and overall engine reliability.
