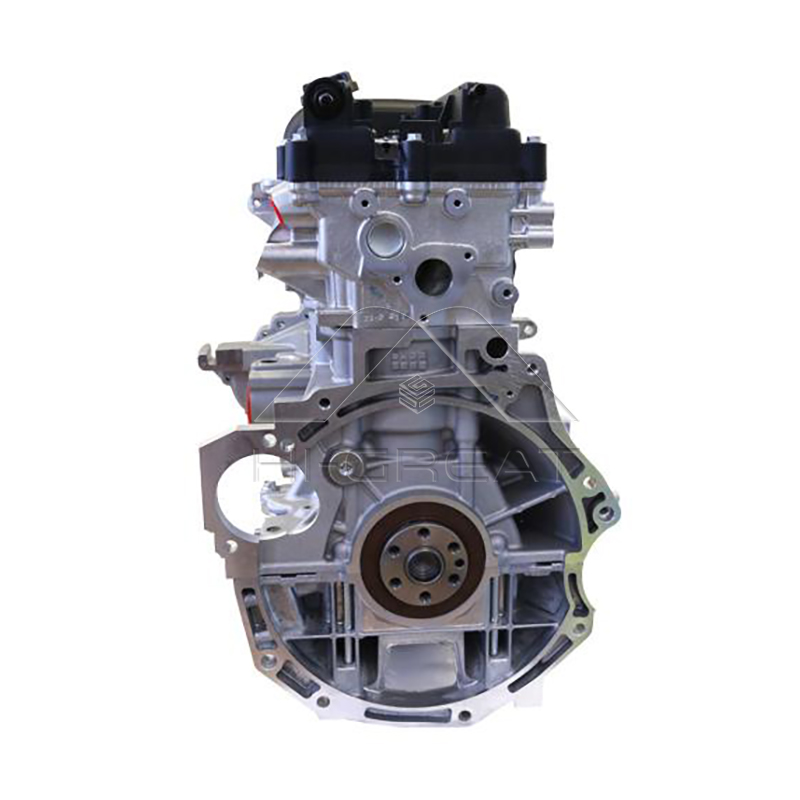

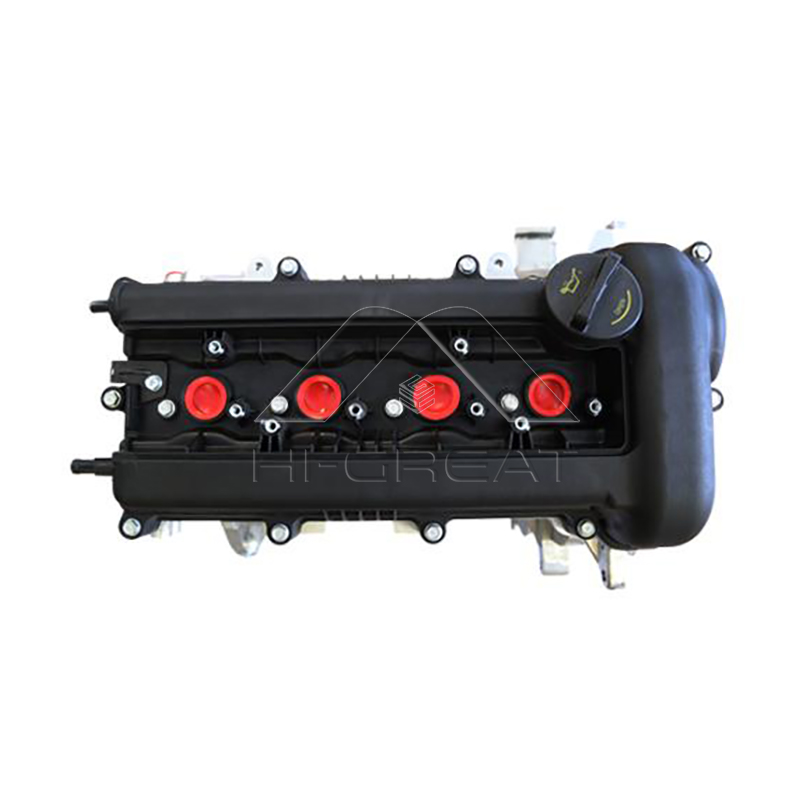

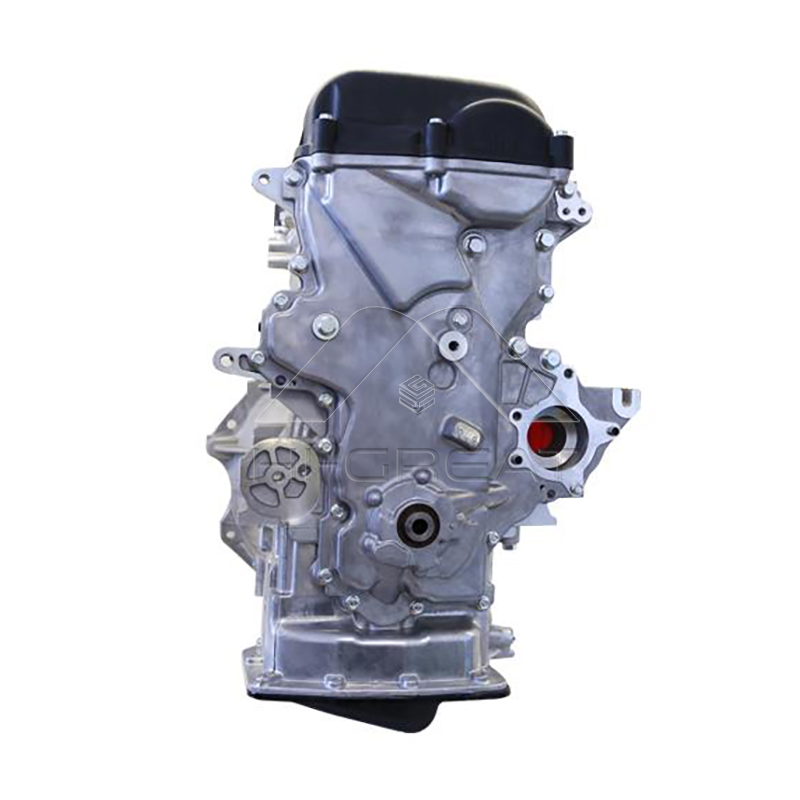

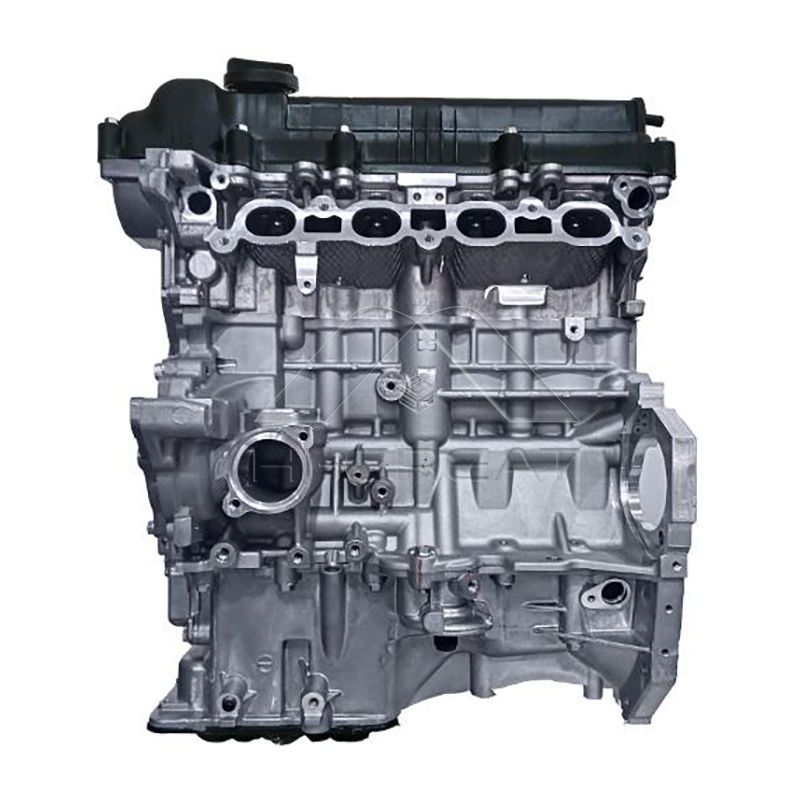

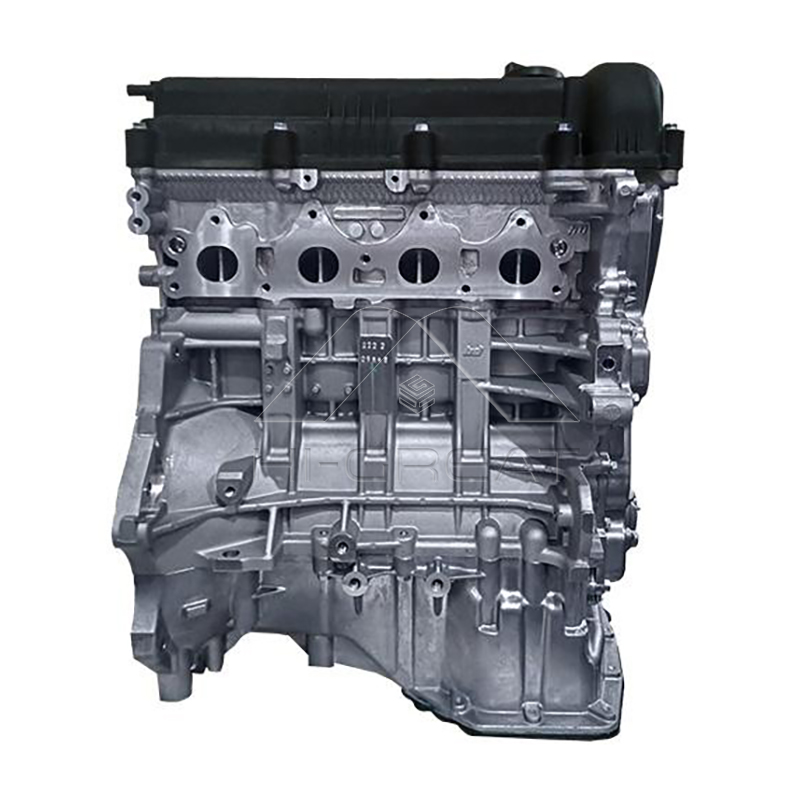

Engine Block G4FA for Hyundai Verna K2 Forte 1.4L Gasoline

Engine Code:	G4FA
HG No:	HGLB1006
Car Series:	Korean Car
Car Brand:	Hyundai
Car Model:	Hyundai Verna K2 Forte 1.4L Gasoline

Inquire Now Next Product

Product Description

The 1.4-liter Hyundai G4FA engine, part of the Gamma series, has been produced since 2006 at the company’s Chinese plant and is widely used as the base power unit in models such as the Ceed, i20, i30, and Accent. With a displacement of 1,396 cc, it features a bore and stroke of 77 mm × 75 mm (3.03 in × 2.95 in), double overhead cams, 4 valves per cylinder, and a chain-driven camshaft with continuously variable valve timing (CVVT) on the intake side only. Equipped with Multi-Point Injection (MPI), it produces 111 PS (82 kW; 109 hp) at 6,300 rpm and 14 kg⋅m (137 N⋅m; 101 lb⋅ft) of torque at 4,200 rpm. In certain applications like the Hyundai i20, output is reduced to 100 PS (74 kW; 99 hp) at 5,500 rpm and 13.9 kg⋅m (136 N⋅m; 101 lb⋅ft) at 4,200 rpm. It was later replaced by the 1.4L Kappa (G4LC) engine.

Related engine code:G4FA, G4FL, G4FS, G4FC, G4FD, G4FG, G4FJ, G4FM, G4FP, G4FT, G4FU

Applicable Models:

Hyundai

Hyundai Accent 4 (RB) in 2010 – 2018

Hyundai i20 1 (PB) in 2008 – 2014

Hyundai ix20 1 (JC) in 2010 – 2019

Hyundai i30 1 (FD) in 2007 – 2012; i30 2 (GD) in 2011 – 2015

Hyundai Solaris 1 (RB) in 2010 – 2017

Kia

Kia Ceed 1 (ED) in 2006 – 2013; Ceed 2 (JD) in 2012 – 2015

Kia ProCeed 1 (ED) in 2007 – 2010

Kia Rio 3 (QB) in 2011 – 2017; Rio 3 (UB) in 2011 – 2017

Kia Venga 1 (YN) in 2009 – 2019

Car Engine Parts Diagram

Let us take a look at a detailed car engine parts diagram, which highlights the essential internal components of an engine. This type of diagram helps us visualize the exact location and arrangement of each part. It typically includes major elements such as the rocker cover, rocker arms, valve springs, cylinder head, spark plugs, valves, engine block, pistons, connecting rods, crankshaft, camshaft, timing chain, oil pump, oil pan, and flywheel. Also shown are related parts like the ignition distributor, fuel pump, gaskets, and distribution components. By referring to such a diagram, we can gain a better understanding of how these parts interact to power a vehicle's engine.
