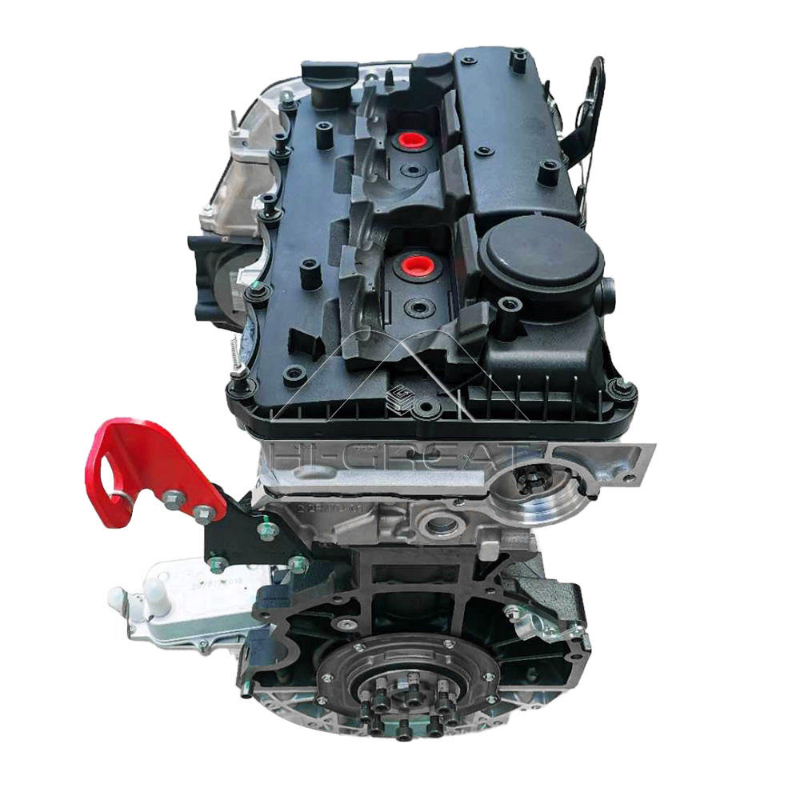

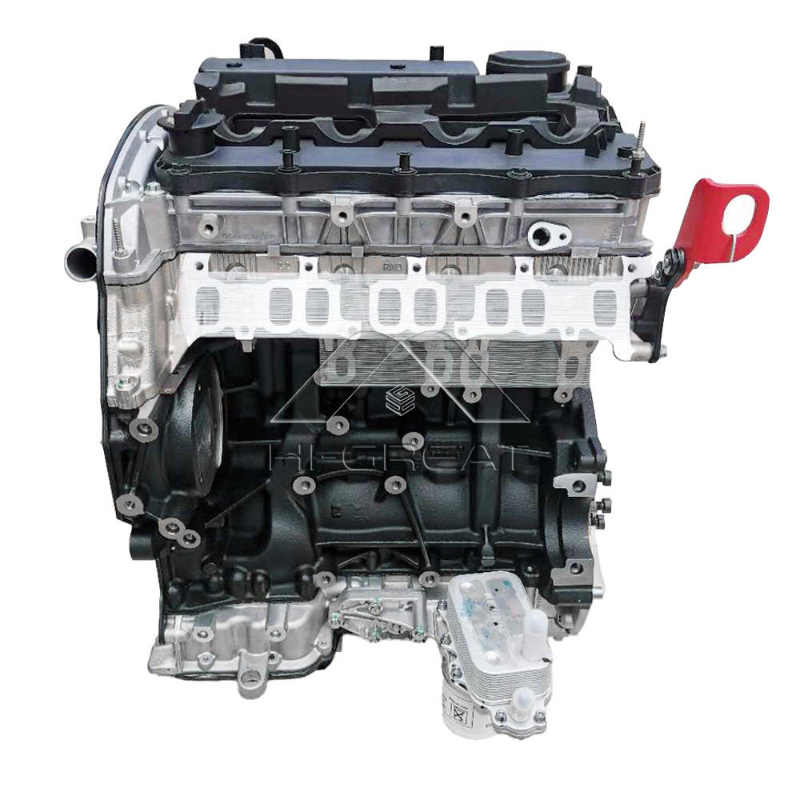

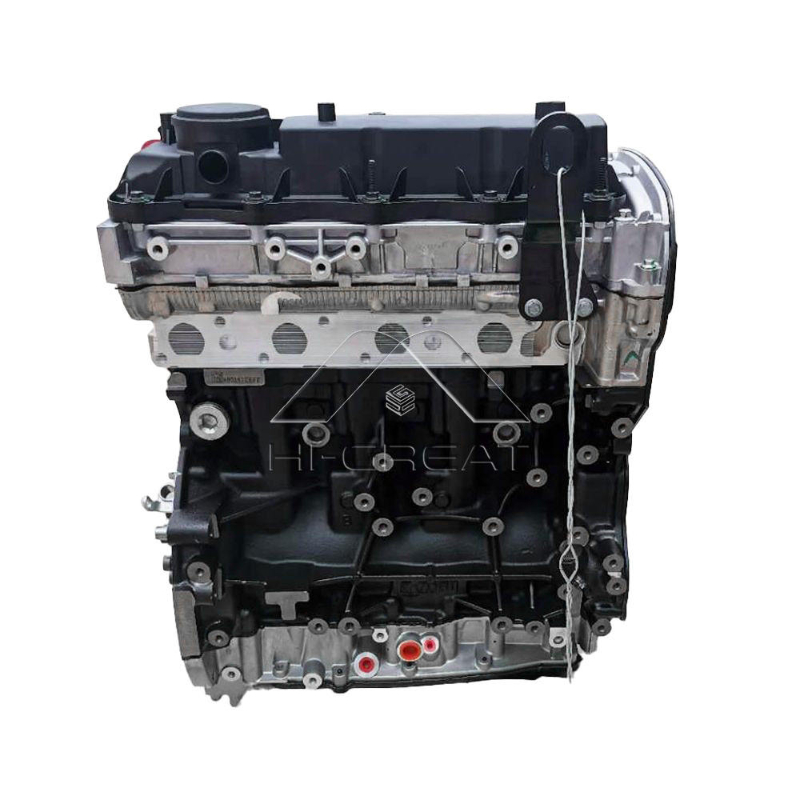

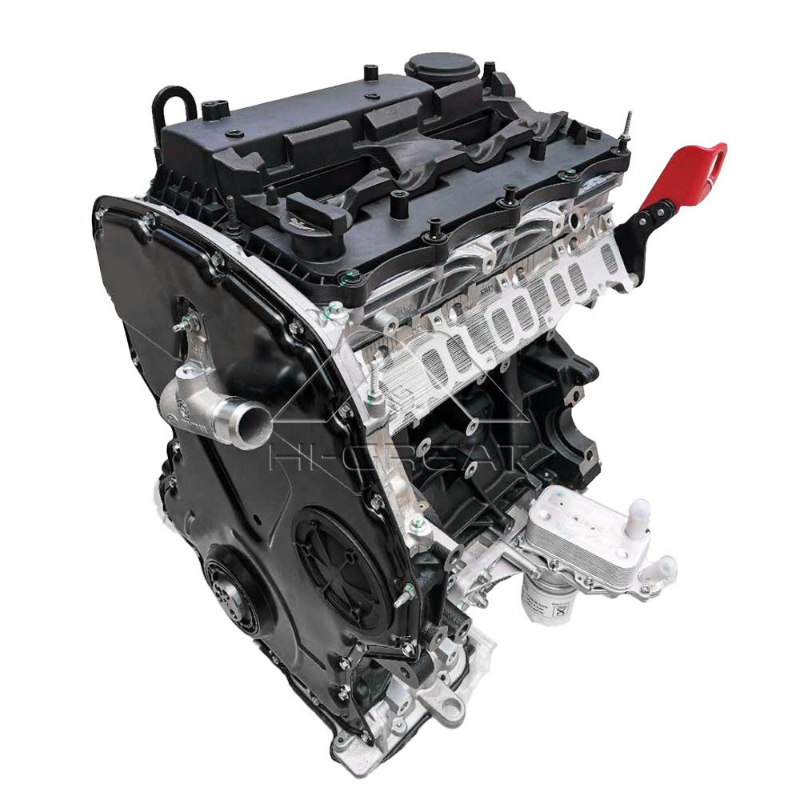

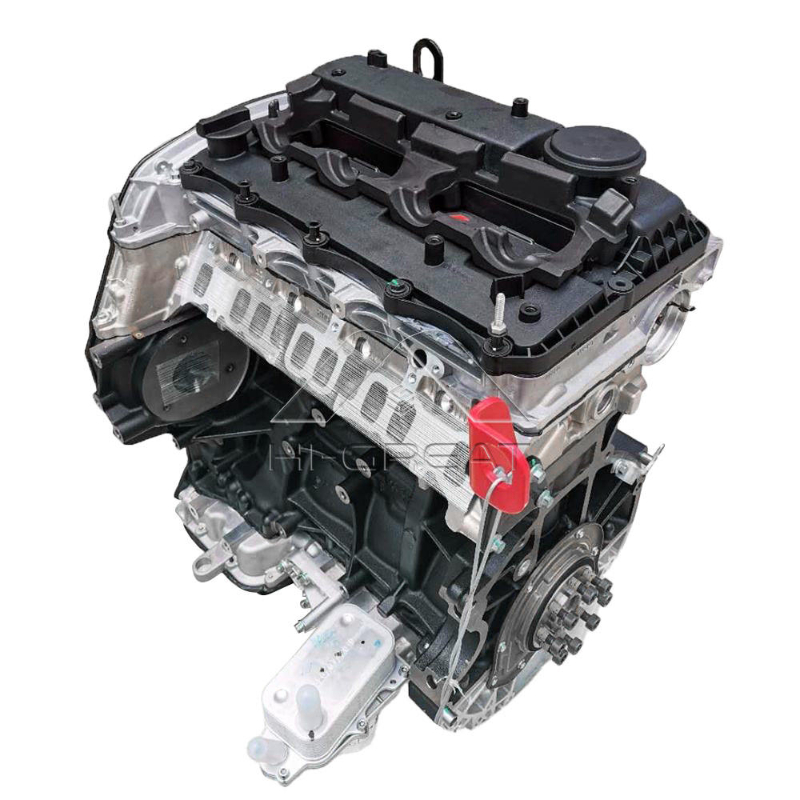

WL WL-T Engine Block for Mazda B-series 4/5 Bongo MPV Ford Ranger Courier

Engine Code:	WL WL-T
HG No:	HGLB2104
Car Series:	Japanese Car
Car Brand:	MAZDA/FORD
Car Model:	Mazda B-series 4/5 Bongo MPV Ford Ranger Courier

Inquire Now Next Product

Product Description

The Mazda WL-T engine, introduced in 1995 as a turbocharged version of the WL pre-chamber diesel, featured a cast-iron four-cylinder block, an aluminum 12-valve SOHC head with three valves per cylinder, no hydraulic lifters, and a combined timing belt system driving both the camshaft and high-pressure fuel pump through six gears. Output ranged from 110–115 hp with an IHI RHF5 turbo and intercooler, while higher-power versions used the same turbo with variable geometry. To reduce vibrations, balancing shafts were installed in the crankcase. Initially fitted with a mechanical Zexel (Bosch) high-pressure fuel pump, the engine switched to an electronically controlled Zexel pump after September 1999, with these later variants often referred to as WL-TE.
Related engine code:WL WL-T

Applicable Models:

Mazda B-series 4 (UF) in 1995 – 1998

Mazda B-series 5 (UN) in 1998 – 2006

Mazda Bongo 4 (SG) in 1995 – 2005

Mazda Bongo Friendee 1 (SG) in 1995 – 2005

Mazda MPV 1 (LV) in 1995 – 1999

Mazda Proceed Marvie 1 (UV) in 1996 – 1999

Ford Courier Mk3 in 1995 – 1998

Ford Freda Mk1 in 1995 – 2000

Ford Raider Mk1 in 1996 – 1997

Ford Ranger Mk1 in 1998 – 2006

Car Engine Parts Diagram

Let us take a look at a detailed car engine parts diagram, which highlights the essential internal components of an engine. This type of diagram helps us visualize the exact location and arrangement of each part. It typically includes major elements such as the rocker cover, rocker arms, valve springs, cylinder head, spark plugs, valves, engine block, pistons, connecting rods, crankshaft, camshaft, timing chain, oil pump, oil pan, and flywheel. Also shown are related parts like the ignition distributor, fuel pump, gaskets, and distribution components. By referring to such a diagram, we can gain a better understanding of how these parts interact to power a vehicle's engine.
