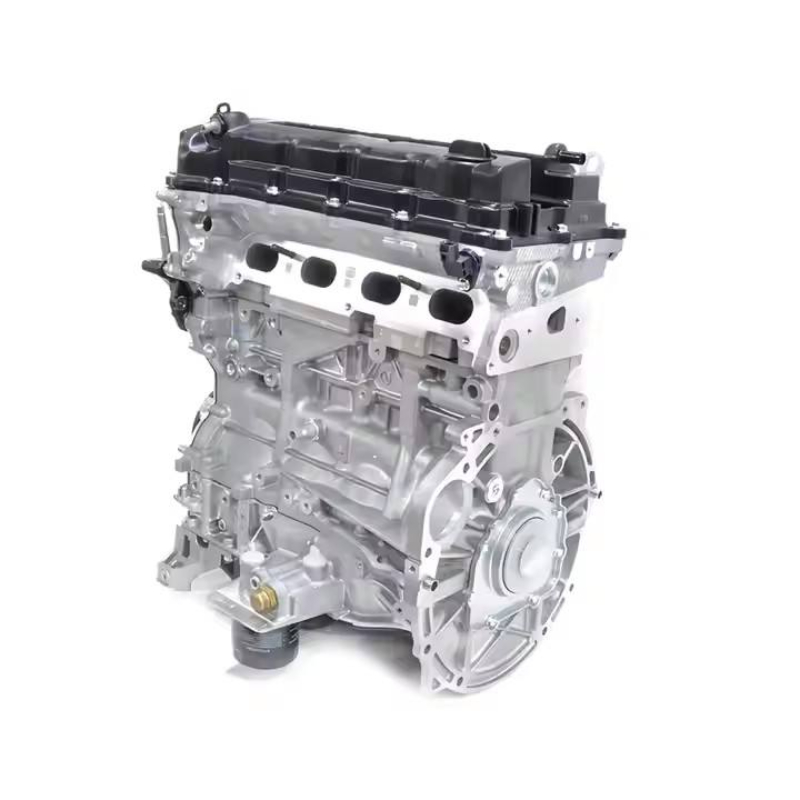

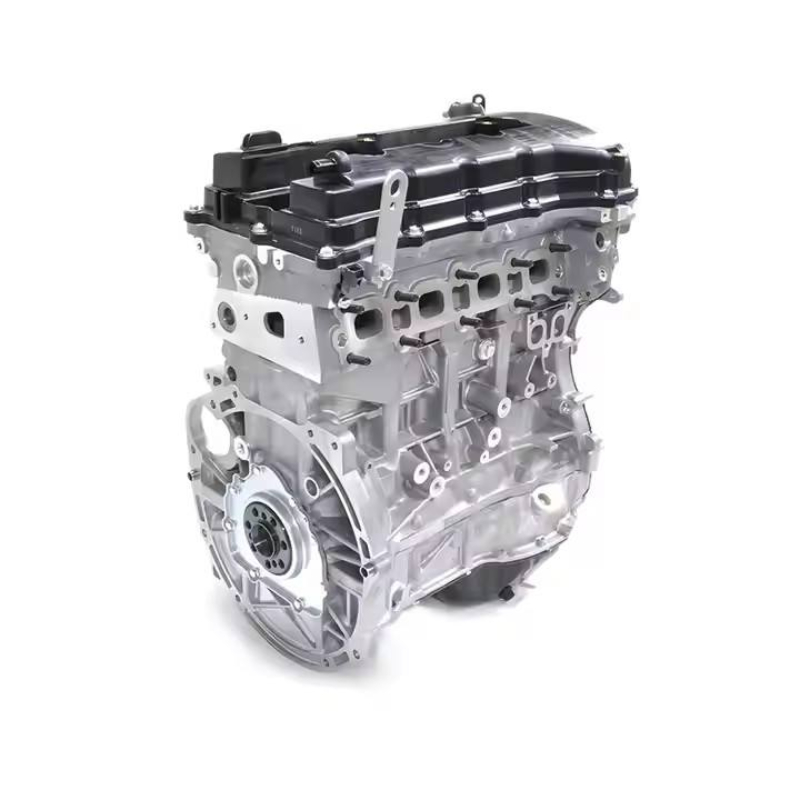

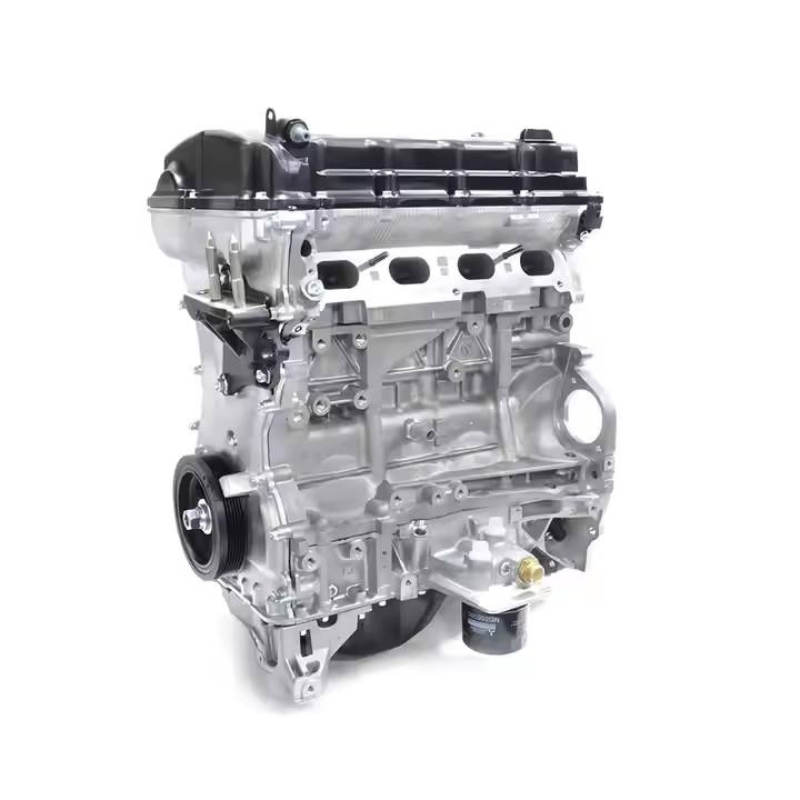

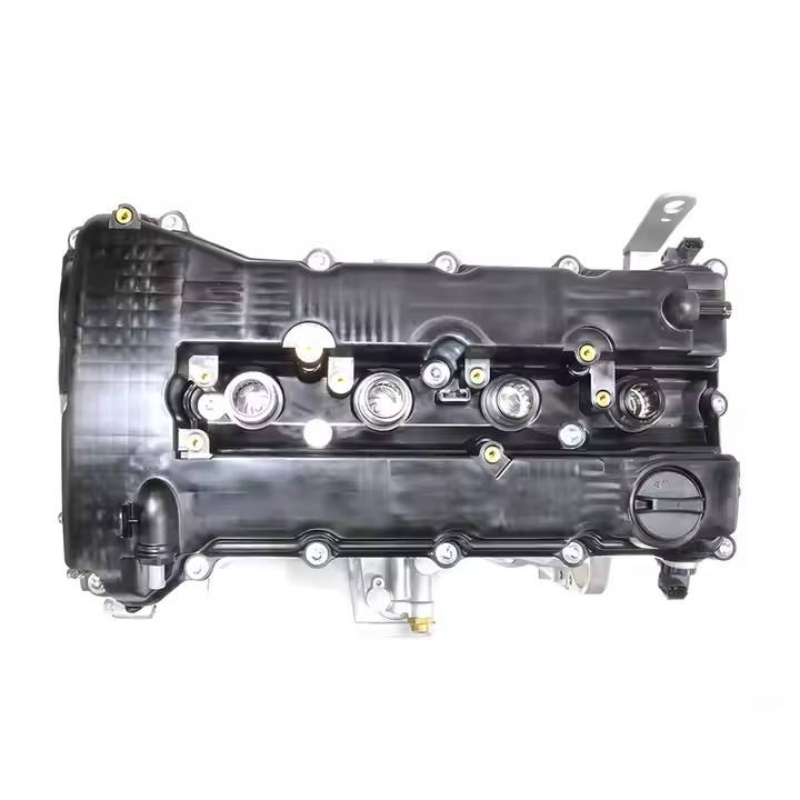

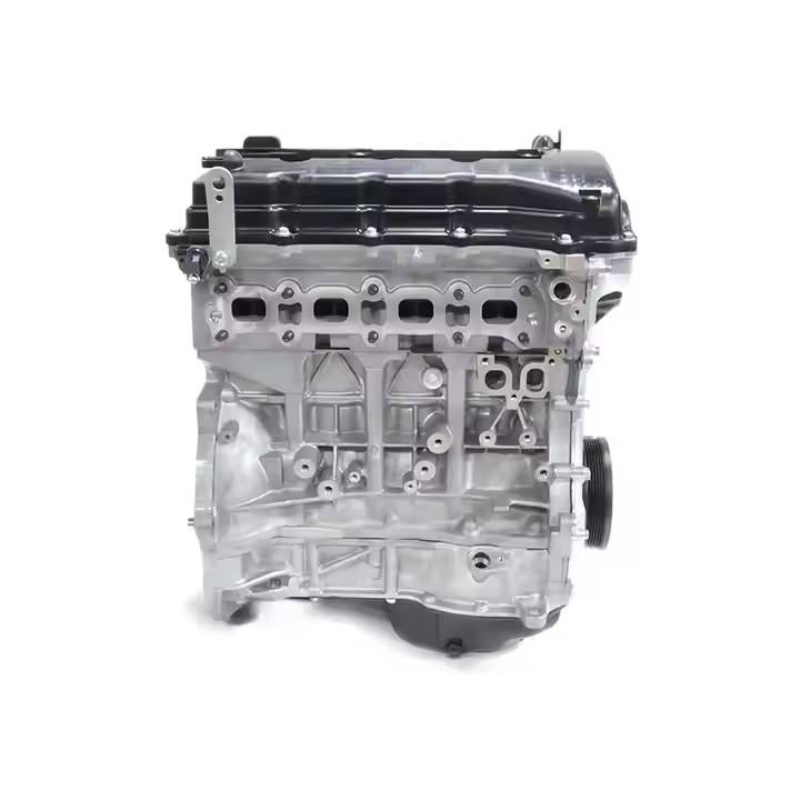

Mitsubishi 4B11 4B10 Engine Block for Mitsubishi ASX Delica Eclipse Cross

Engine Code:	4B10 4B11
HG No:	HGLB1062
Car Series:	Japanese Car
Car Brand:	MITSUBISHI
Car Model:	Mitsubishi Lancer Proton Waja 2000-2011

Inquire Now Next Product

Product Description

The 2.0-liter 16-valve Mitsubishi 4B11 engine has been produced since 2006 and is used in popular models such as the ASX, Outlander, Lancer, and Eclipse Cross. Developed through a joint alliance, this inline 4-cylinder DOHC engine is related to Chrysler's ECN and Hyundai's G4KA and G4KD engines. It features MIVEC variable valve timing (intake only on PHEV versions), a displacement of 1,998 cc with bore and stroke both at 86 mm (3.39 in), and a compression ratio of 10.0:1 (10.5:1 for PHEV). The fuel system is ECI-MULTI. Peak output is 110–116 kW (150–158 PS; 148–156 bhp) at 6,000 rpm with 199 N⋅m (20.3 kg⋅m; 147 lb⋅ft) of torque at 4,250 rpm, while PHEV variants deliver 87 kW (118 PS; 117 bhp) at 4,500 rpm and 190 N⋅m (19.4 kg⋅m; 140 lb⋅ft) of torque at 4,500 rpm.

Related engine code:4B10, 4B11T and 4B12

Applicable Models:

Mitsubishi ASX 1 (GA) since 2010

Mitsubishi Delica 5 (CV) since 2007

Mitsubishi Eclipse Cross 1 (GK) since 2017

Mitsubishi Lancer 10 (CY) in 2007 – 2017

Mitsubishi Outlander 2 (CW) in 2009 – 2012

Mitsubishi Outlander 3 (GF) since 2012

Peugeot 4007 I (I3) in 2008 – 2012

Peugeot 4008 I (J3) in 2012 – 2017

Car Engine Parts Diagram

Let us take a look at a detailed car engine parts diagram, which highlights the essential internal components of an engine. This type of diagram helps us visualize the exact location and arrangement of each part. It typically includes major elements such as the rocker cover, rocker arms, valve springs, cylinder head, spark plugs, valves, engine block, pistons, connecting rods, crankshaft, camshaft, timing chain, oil pump, oil pan, and flywheel. Also shown are related parts like the ignition distributor, fuel pump, gaskets, and distribution components. By referring to such a diagram, we can gain a better understanding of how these parts interact to power a vehicle's engine.

Related News

May. 14, 2025

2023 Thailand TAPA Exhibition

Learn More

May. 21, 2025

2023 Turkey Istanbul Automechanika Fair

Learn More

May. 28, 2025

Shanghai Automechanika Exhibit

Learn More

Related FAQ

Q: How can you ensure the quality?

A: We strictly test 100% products before delivery to guarantee each set in excellence.
Q: How about the after-sales service?

A: 12 months quality warranty. Once you meet any problem during application, you could contact us at 24/7.
Q: Sample Available?

A: Yes, it's sure for you to choose sample or samples to test product quality and our service, which is our pleasure.
Q: What is the terms of payment?

A: Usually, 30% deposit in advance and 70% payment before shipment.
Q: What is the delivery date?

A: Generally, if in small amount, the delivery is 10 work days around after payment, while in large demands, we need to confirm it by fact.
Q: Could I purchase other engine parts from your company?

A: Yes, definitely. We supply engine assembly, engine block, cylinder block, cylinder head, and spare parts applicable with the most of auto cars and trucks. You could leave the OE number or engine number of what you wanna purchase, then we could talk about the details further.
