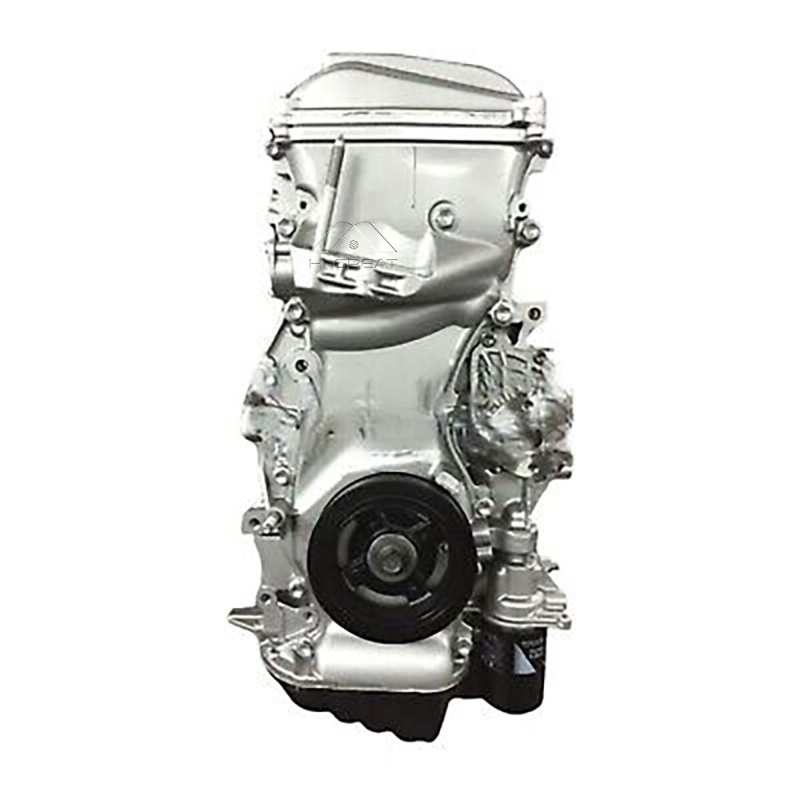

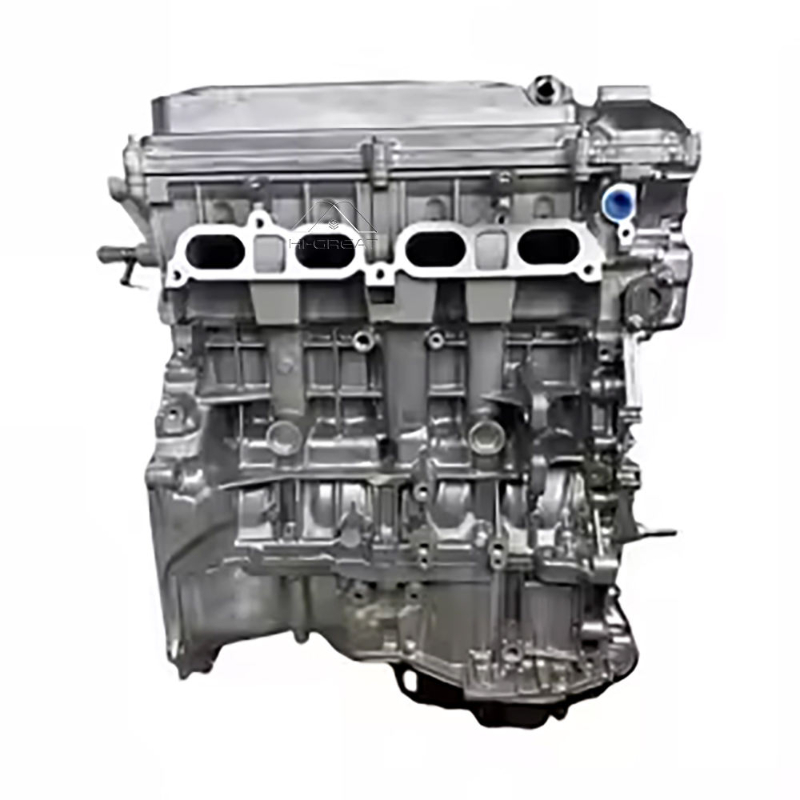

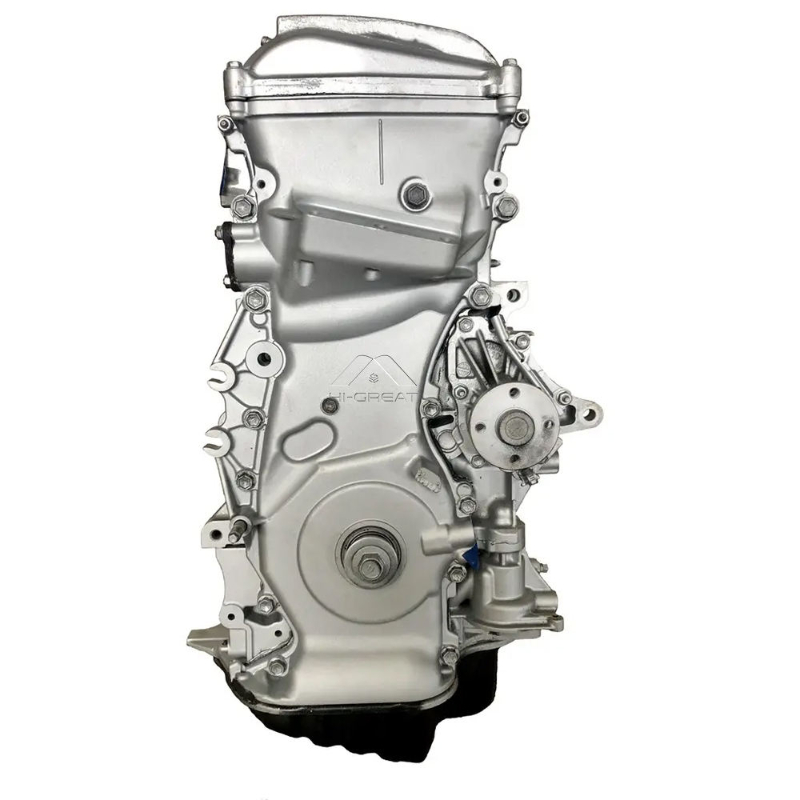

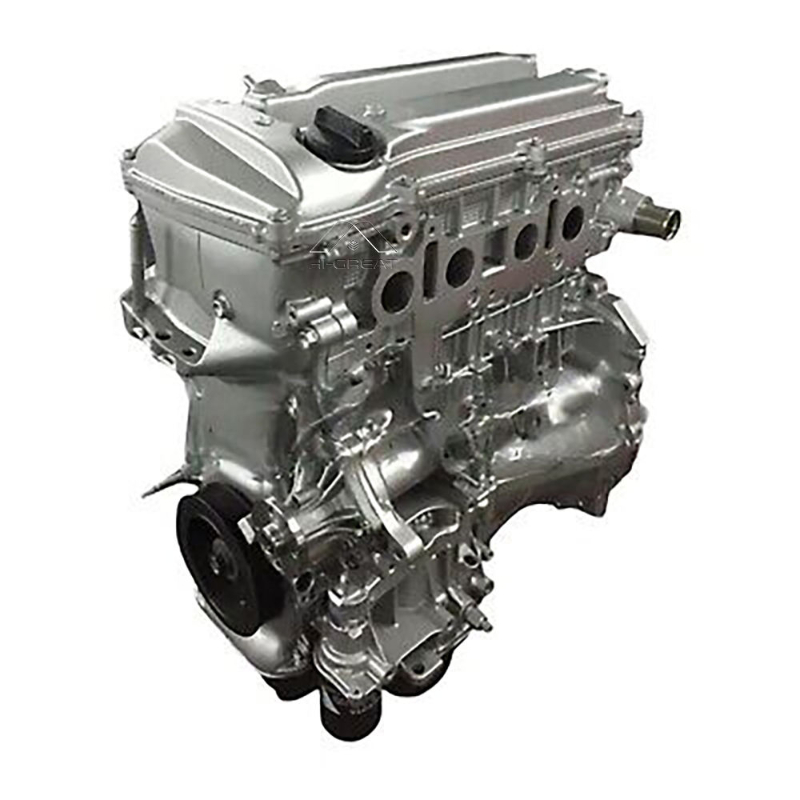

Engine System 2.0L 1AZ-FE Engine Block for Toyota Camry RAV4 Ipsum

Engine Code:	1AZ 1AZ-FE
HG No:	HGLB2052
Car Series:	Japanese Car
Car Brand:	TOYOTA
Car Model:	Toyota Camry RAV4 Ipsum

Inquire Now Next Product

Product Description

The Toyota 1AZ series is a 2.0-liter inline-four engine family produced from 2000 to 2014. The 1AZ-FE, widely used in models such as the Camry, RAV4, Ipsum, and Avensis Verso, features an aluminum block and most versions are equipped with a VVT-i phase regulator on the intake shaft. A key variant is the 1AZ-FSE, also 2.0 L (1998 cc) with a square bore and stroke of 86 × 86 mm and a compression ratio of 11.0:1. It produces 149 PS (110 kW, 147 hp) at 5700 rpm and 196 Nm (145 lb-ft) at 4000 rpm, and is distinguished by Toyota’s D-4 direct fuel injection system.

Related engine code:1AZ‑FSE, 2AZ‑FE, 2AZ‑FSE, 2AZ‑FXE

Applicable Models:

Toyota Avensis Verso 1 (XM20) in 2001 – 2009

Toyota Aurion 1 (XV40) in 2006 – 2009

Toyota Camry 5 (XV30) in 2001 – 2006; Camry 6 (XV40) in 2006 – 2012; Camry 7 (XV50) in 2012 – 2014

Toyota Ipsum 2 (XM20) in 2001 – 2009

Toyota RAV4 2 (XA20) in 2000 – 2005; RAV4 3 (XA30) in 2005 – 2010

Car Engine Parts Diagram

Let us take a look at a detailed car engine parts diagram, which highlights the essential internal components of an engine. This type of diagram helps us visualize the exact location and arrangement of each part. It typically includes major elements such as the rocker cover, rocker arms, valve springs, cylinder head, spark plugs, valves, engine block, pistons, connecting rods, crankshaft, camshaft, timing chain, oil pump, oil pan, and flywheel. Also shown are related parts like the ignition distributor, fuel pump, gaskets, and distribution components. By referring to such a diagram, we can gain a better understanding of how these parts interact to power a vehicle's engine.

Related News

May. 14, 2025

2023 Thailand TAPA Exhibition

Learn More

May. 21, 2025

2023 Turkey Istanbul Automechanika Fair

Learn More

May. 28, 2025

Shanghai Automechanika Exhibit

Learn More

Related FAQ

Q: How can you ensure the quality?

A: We strictly test 100% products before delivery to guarantee each set in excellence.
Q: How about the after-sales service?

A: 12 months quality warranty. Once you meet any problem during application, you could contact us at 24/7.
Q: Sample Available?

A: Yes, it's sure for you to choose sample or samples to test product quality and our service, which is our pleasure.
Q: What is the terms of payment?

A: Usually, 30% deposit in advance and 70% payment before shipment.
Q: What is the delivery date?

A: Generally, if in small amount, the delivery is 10 work days around after payment, while in large demands, we need to confirm it by fact.
Q: Could I purchase other engine parts from your company?

A: Yes, definitely. We supply engine assembly, engine block, cylinder block, cylinder head, and spare parts applicable with the most of auto cars and trucks. You could leave the OE number or engine number of what you wanna purchase, then we could talk about the details further.
