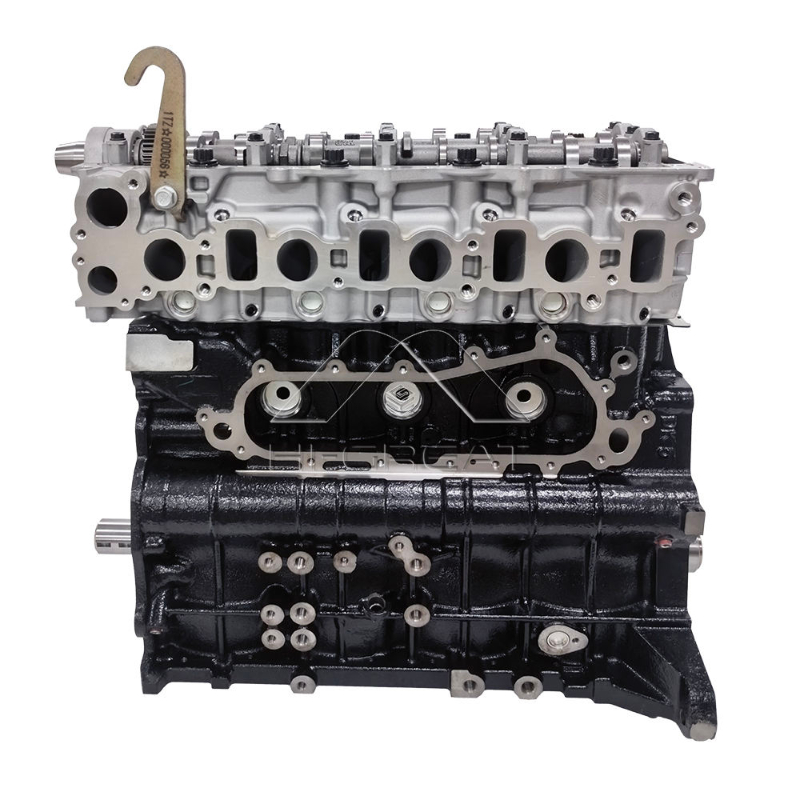

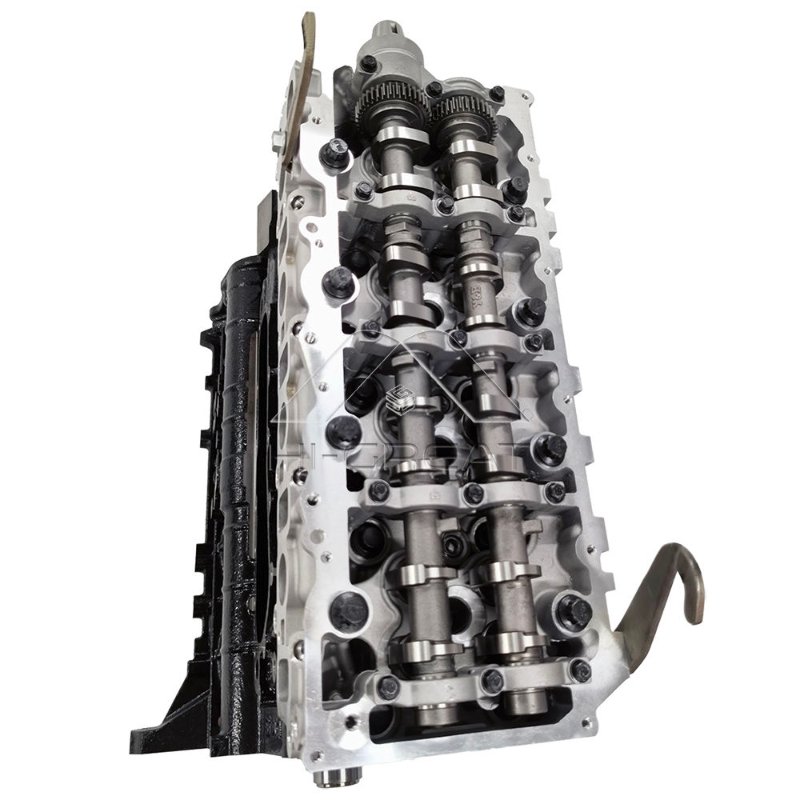

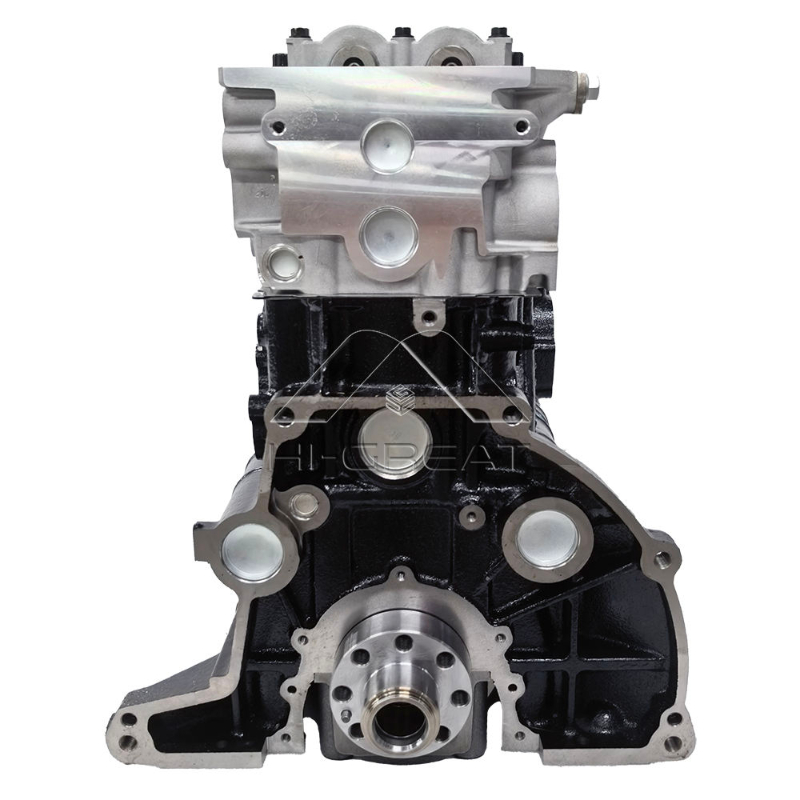

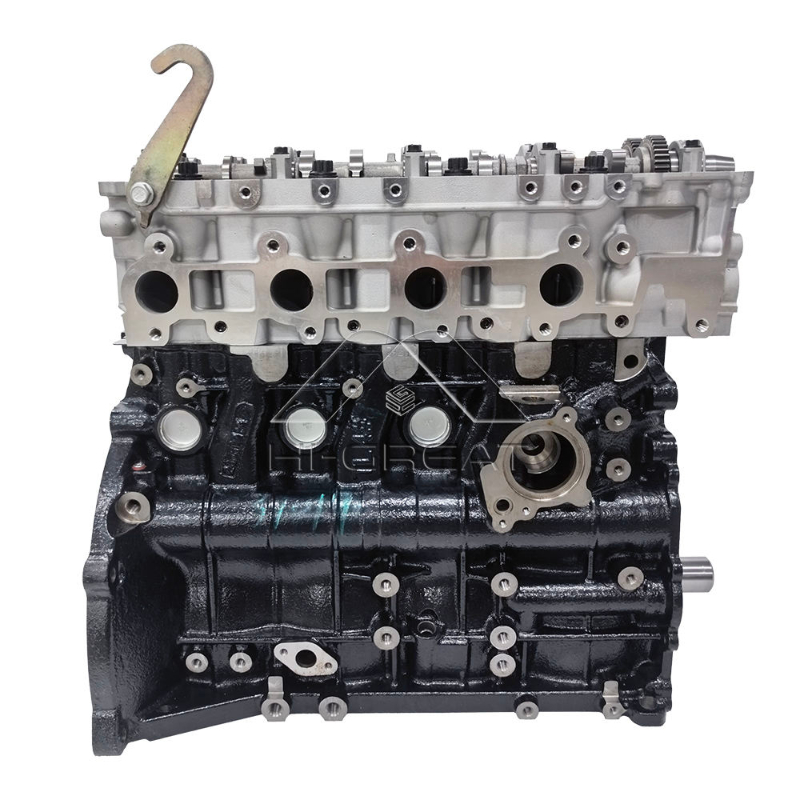

3.0L Diesel Engine 1KD 1KD-FTV Engine Long Block for Toyota Hilux Hiace Fortuner Land Cruiser

Engine Code:	1KD 1KD-FTV
HG No:	HGLB2061
Car Series:	Japanese Car
Car Brand:	TOYOTA
Car Model:	Toyota Hilux Hiace Fortuner Land Cruiser

Inquire Now Next Product

Product Description

The Toyota 1KD-FTV is a 3.0 L (2,982 cc) inline-four common rail D-4D diesel engine produced with a DOHC 16-valve design, variable nozzle turbocharger (VNT), and intercooler. It has a bore and stroke of 96 mm × 103 mm (3.78 in × 4.06 in), a compression ratio of 17.9:1, and a redline at 4200 rpm. Output varies by market: typically 127 kW (170 hp; 173 PS) at 3400 rpm with 343–410 N·m (253–302 lb·ft; 35–42 kg·m) of torque at 1800–3400 rpm, with some versions rated up to 140 kW (188 hp; 190 PS) and 280 N·m (207 lb·ft; 29 kg·m).

It employs Toyota’s high-pressure D-4D common rail injection system operating up to 1,350 bar (19,600 psi), managed by a 32-bit ECU controlling fuel delivery, valve timing, and turbo boost. Pilot injection improves combustion smoothness, reduces lag, and lowers noise. Compared to its predecessor, the 1KZ, the 1KD delivers about 17% more power while consuming 11% less fuel.

This engine was used in the Toyota Land Cruiser Prado, Hilux Surf (3rd gen), HiAce (5th gen), Fortuner, Hilux, Dyna, Toyoace, and the Hino Dutro.

Related engine code:1KD 1KD-FTV

Applicable Models:

Toyota 4Runner 4 (N210) in 2002 – 2009

Toyota Fortuner AN60 in 2004 – 2015; Fortuner 2 (AN160) since 2015

Toyota Hiace

Toyota Hilux 6 (N140) in 2001 – 2005; Hilux 7 (AN10) in 2005 – 2015; Hilux 8 (AN120) since 2015

Toyota LC Prado 120 (J120) in 2006 – 2009; LC Prado 150 (J150) since 2015

Car Engine Parts Diagram

Let us take a look at a detailed car engine parts diagram, which highlights the essential internal components of an engine. This type of diagram helps us visualize the exact location and arrangement of each part. It typically includes major elements such as the rocker cover, rocker arms, valve springs, cylinder head, spark plugs, valves, engine block, pistons, connecting rods, crankshaft, camshaft, timing chain, oil pump, oil pan, and flywheel. Also shown are related parts like the ignition distributor, fuel pump, gaskets, and distribution components. By referring to such a diagram, we can gain a better understanding of how these parts interact to power a vehicle's engine.
