French Car

Home - Products - Engine System - Cylinder Head - French Car - DV4C DV6C 8HR 9HP BHS Cylinder Head 908733 0200HS for B-MAX FOCUS Peugeot 206 207 Volvo S60

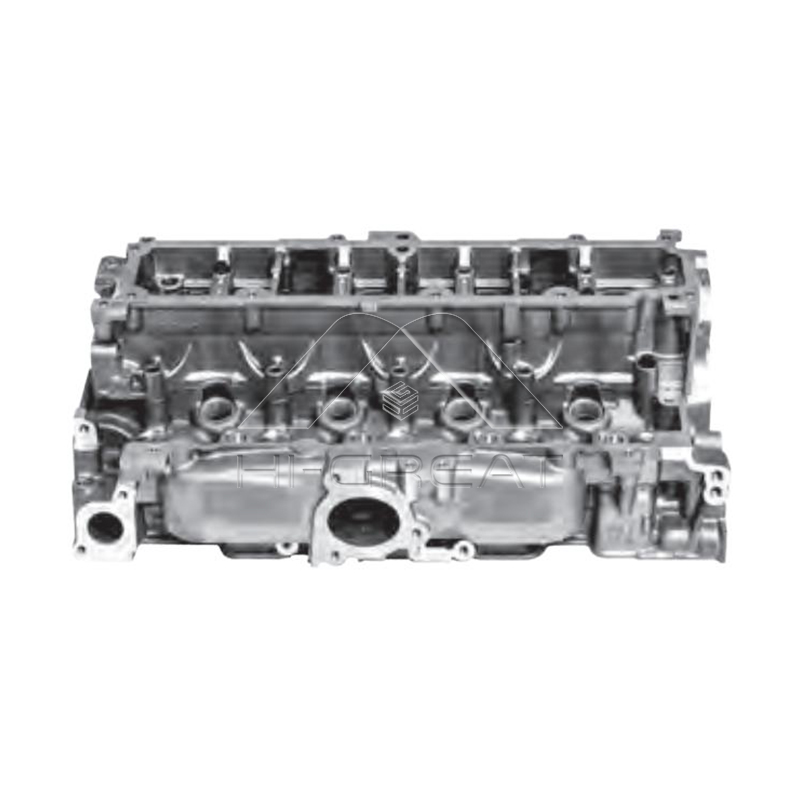

DV4C DV6C 8HR 9HP BHS Cylinder Head 908733 0200HS for B-MAX FOCUS Peugeot 206 207 Volvo S60

Engine Code:	DV4C DV6C 8HR 9HP BHS
HG No:	HGCH0221
Car Series:	French Car
Car Brand:	PEUGEOT
Car Model:	Ford B-MAX FOCUS Peugeot 206 207 Volvo S60

Inquire Now Next Product

Product Description

OEM NO:0200HS

REF NO:908733

Applicable Models:

Citroën

Berlingo Berlingo First Box Body MPV (M_) 2005-2011 1.6 HDi 75 9HW DV6BTED4 DV6B 1560cc 55kW

Berlingo Box Body MPV (B9) 2008- 1.6 HDi 110 9HZ DV6TED4 1560cc 80kW

Berlingo Multispace (B9) 2008- 1.6 HDi 110 9HZ DV6TED4 1560cc 80kW

C2 (JM_) 2005-2009 1.6 HDi 9HZ DV6TED4 1560cc 80kW

C3 I (FC_/FN_) 2005-2009 1.6 HDi 9HZ DV6TED4 1560cc 80kW

C3 Picasso (SH_) 2009-2010 1.6 HDi 9HZ DV6TED4 1560cc 80kW

C4 Coupe (LA_) 2004-2011 1.6 HDi 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

C4 Grand Picasso I (UA_) 2006-2011 1.6 HDi 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

C4 Picasso I (UD_) 2007-2013 1.6 HDi 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

C5 II (RC_) 2004-2008 1.6 HDi 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

C5 II Break (RE_) 2004-2008 1.6 HDi 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

C5 II Estate Van (RE_) 2004-2008 1.6 HDi 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

Xsara Picasso (N68) 2004-2011 1.6 HDi 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

Ford

C-Max (DM2) 2007-2010 1.6 TDCi GPDA HHDA HHDB 1560cc 66kW

Focus C-Max (DM2) 2005-2007 1.6 TDCi HHDA HHDB 1560cc 66kW

Focus II (DA_/HCP/DP) 2005-2012 1.6 TDCi GPDA GPDB GPDC HHDA HHDB 1560cc 66kW

Focus II Saloon (DB_/FCH/DH) 2005-2012 1.6 TDCi GPDA GPDB GPDC HHDA HHDB 1560cc 66kW

Focus II Turnier (DA_/FFS/DS) 2004-2012 1.6 TDCi GPDA GPDB GPDC HHDA HHDB 1560cc 66kW

Mazda

3 (BK) 2004-2009 1.6 DI Turbo Y601 Y603 Y605 Y642 1560cc 80kW

Peugeot

1007 (KM_) 2007- 1.6 HDi 9HZ DV6TED4 1560cc 80kW

206 CC (2D) 2005-2007 1.6 HDi 110 9HZ DV6TED4 1560cc 80kW

206 Hatchback (2A/C) 2004-2007 1.6 HDi 110 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

206 SW (2E/K) 2004- 1.6 HDi 110 9HZ DV6TED4 1560cc 80kW

207 CC (WD_) 2007-2015 1.6 HDi 9HZ DV6TED4 1560cc 80kW

207 SW (WK_) 2007-2012 1.6 HDi 9HZ DV6TED4 1560cc 80kW

3008 I (0U_) 2009-2016 1.6 HDi 9HZ DV6TED4 1560cc 80kW

307 (3A/C) 2004-2009 1.6 HDi 110 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

307 Break (3E) 2004-2008 1.6 HDi 110 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

308 SW I (4E_/4H_) 2007-2014 1.6 HDi 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

407 (6D_) 2004-2010 1.6 HDi 110 9HY DV6TED4 9HZ DV6TED4 1560cc 80kW

5008 (0U_/0E_) 2009-2017 1.6 HDi 9HZ DV6TED4 1560cc 80kW

Partner Box Body MPV 2008- 1.6 HDi 9HT DV6BTED4 DV6BUTED4 9HW DV6BTED4 1560cc 55kW

Partner Box Body MPV (5_/G_) 2005-2008 1.6 HDi 75 9HW DV6BTED4 1560cc 55kW

Partner MPV (5_/G_) 2005-2008 1.6 HDi 75 9HW DV6BTED4 1560cc 55kW

Partner Origin Box Body MPV (G_) 2008-2015 1.6 HDi 75 9HW DV6BTED4 1560cc 55kW

Partner Tepee 2008- 1.6 HDi 9HZ DV6TED4 1560cc 80kW

Volvo

C30 (533) 2010-2012 D2 D4162T 1560cc 84kW

S40 II (544) 2010-2012 D2 D4162T 1560cc 84kW

S60 II (134) 2011-2015 DRIVe D2 D4162T 1560cc 84kW

S80 II (124) 2011-2014 1.6 DRIVe D4162T 1560cc 84kW

S80 II (124) 2014-2016 D2 D4162T 1560cc 85kW

V40 Cross Country (526) 2013-2015 1.6 D2 DRIVe D4162T 1560cc 84kW

Cylinder Head Structure diagram

3.0TDI 1KD-FTV Engine 11101-30030 11101-30050 Cylinder Head Assembly for Toyota Hilux Land Cruiser

The image shows the detailed construction of a cylinder head assembly, a key component of an internal combustion engine that houses precision parts controlling intake and exhaust gas flow within the combustion chamber.

Key elements include the camshaft, which actuates the valve rocker arms through the rocker shaft, transferring motion to open and close the valves at precise timing intervals. The valve clearance adjusters ensure optimal valve lash for consistent performance and durability, while the valve springs and valve retainers maintain proper valve seating during engine operation.

Additional features, such as the stud holes for securing the head to the engine block and the housing for the thermostat, support structural integrity and cooling system integration. Altogether, these components enable efficient combustion, improved airflow dynamics, and overall engine reliability.
