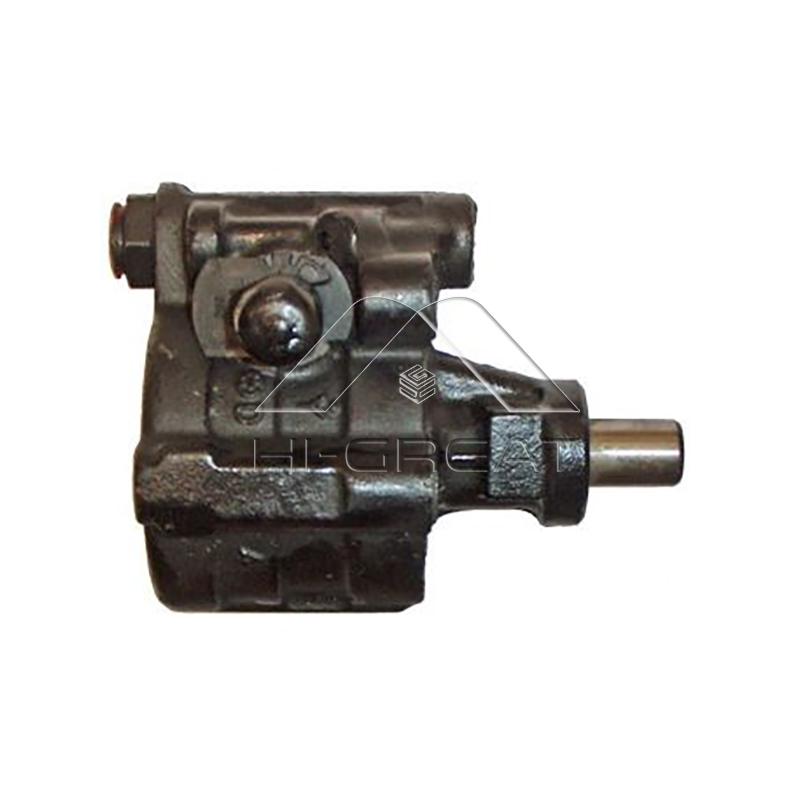

OEM 7700779564 - Hydraulic Steering Pump for RENAULT SUPER 5 (B/C40_) 1.4 (B/C402)

OE No:	7700779564
HG No:	HGSP0627
Car Series:	France Car
Car Brand:	RENAULT
Car Model:	RENAULT SUPER 5 (B/C40_) 1.4 (B/C402)
Warranty:	12 Months

Inquire Now Next Product

Product Description

OE No: 7700779564

Applicable Models:

RENAULT

SUPER 5 (B/C40_) 1.4 (B/C402) C1J 768,C1J 780 1984-1988

SUPER 5 (B/C40_) 1.4 (B/C40J) C2J 782 1987-1989

SUPER 5 (B/C40_) 1.4 Cat (B/C/407) C3J 700,C3J 702,C3J 760 1985-1996

SUPER 5 (B/C40_) 1.4 Turbo (C405) C1J 782,C1J 784,C1J 788 1985-1990

SUPER 5 (B/C40_) 1.4 Turbo GT (C405) 840 730 1985-1991

Similar Products OEM:

7700779564 7700749835 7700773332 7700802364 7700795293 7700795294 7700795295 26014539 7700819308C 7700814452 7700815010 481053B 7700814452 7700819308C 7700273749 7700840106

7700840801C 7700840801 7700840106 7700419155 491109577R 7700694136 7700840103

Structure of the Steering Pump

1. Drive wheel 2. Drive shaft 3. Circlip 4. Oil seal 5. Bearing 6. Pump body 7. Steel ball 8. Pressure switch assembly 9.O type sealing ring 10. Pressure plate 11.Stator 12. Blade 13. Rotor 14. Bolt 15. Pump cover 16. Sealing ring 17. Locating pin 18. Protection blockage 19. Bolt 20. Oil inlet pipe 21.O-shaped sealing ring 22. Valve block 23. Spring 24. Slide valve assembly

The steering pump is the core component of a hydraulic power steering (HPS) system, responsible for supplying high-pressure hydraulic fluid to the steering system, thereby assisting the driver in turning the steering wheel with ease.
