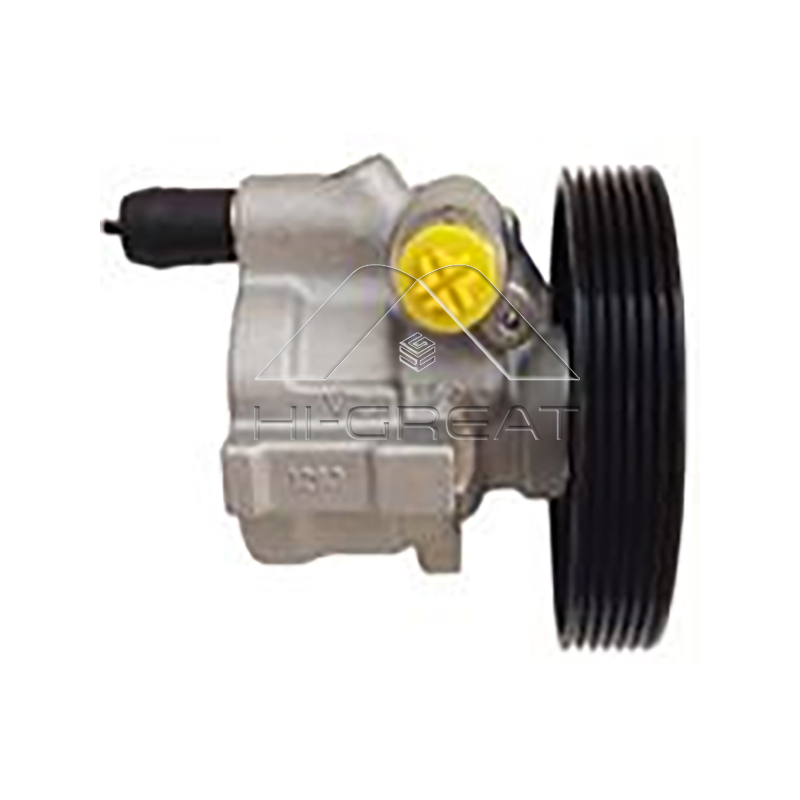

8200223612 OEM Steering Pump for RENAULT ESPACE III (JE0_) 2.2 dCi (JE0K)

OE No:	8200223612 7700437081 8200709233 491108977R 8200888373 8200096704
HG No:	HGSP0641
Car Series:	France Car
Car Brand:	RENAULT
Car Model:	RENAULT ESPACE III (JE0_) 2.2 dCi (JE0K)
Warranty:	12 Months

Inquire Now Next Product

Product Description

OE No: 8200223612 7700437081 8200709233 491108977R 8200888373 8200096704

Applicable Models:

RENAULT

AVANTIME (DE0_) 2.0 16V Turbo (DE0U, DE0V) F4R 760,F4R 761 2001-2003

ESPACE III (JE0_) 2.2 dCi (JE0K) G9T 642,G9T 710 2000-2002

ESPACE IV (JK0/1_) 1.9 dCi (JK0U, JK0G) F9Q 680,F9Q 820,F9Q 826 2002-

ESPACE IV (JK0/1_) 1.9 dCi (JK0U) F9Q 820 2003-2005

ESPACE IV (JK0/1_) 2.0 Turbo (JK0A, JK0B, JK0N) F4R 794,F4R 795,F4R 796,F4R 797 2002-

LAGUNA II (BG0/1_) 1.8 16V (BG04, BG0B, BG0C, BG0V) F4P 770,F4P 774 2001-2005

LAGUNA II (BG0/1_) 1.9 dCi F9Q 718,F9Q 754 2001-2007

LAGUNA II (BG0/1_) 1.9 dCi (BG1A, BG1W, BG0G) F9Q 670,F9Q 674,F9Q 758 2005-2007

LAGUNA II (BG0/1_) 2.2 dCi G9T 600,G9T 605,G9T 706,G9T 707 2005-2007

LAGUNA II Grandtour (KG0/1_) 1.8 16V F4P 770,F4P 774 2001-2005

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG12) F9Q 758,F9Q 759 2005-2007

VEL SATIS (BJ0_) 2.0 16 V Turbo F4R 766,F4R 767 2004-

VEL SATIS (BJ0_) 2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H) G9T 600,G9T 606,G9T 607,G9T 700,G9T 702,G9T 703 2004-

VEL SATIS (BJ0_) 2.2 dCi (BJ0M) G9T 700,G9T 702 2004-

Structure of the Steering Pump

1. Drive wheel 2. Drive shaft 3. Circlip 4. Oil seal 5. Bearing 6. Pump body 7. Steel ball 8. Pressure switch assembly 9.O type sealing ring 10. Pressure plate 11.Stator 12. Blade 13. Rotor 14. Bolt 15. Pump cover 16. Sealing ring 17. Locating pin 18. Protection blockage 19. Bolt 20. Oil inlet pipe 21.O-shaped sealing ring 22. Valve block 23. Spring 24. Slide valve assembly

The steering pump is the core component of a hydraulic power steering (HPS) system, responsible for supplying high-pressure hydraulic fluid to the steering system, thereby assisting the driver in turning the steering wheel with ease.
