French Car

Home - Products - Steering System Parts - Steering Pump - French Car - 7701055798 OEM Steering Pump for RENAULT ESPACE I (J11_) 2.1 TD (J/S115)

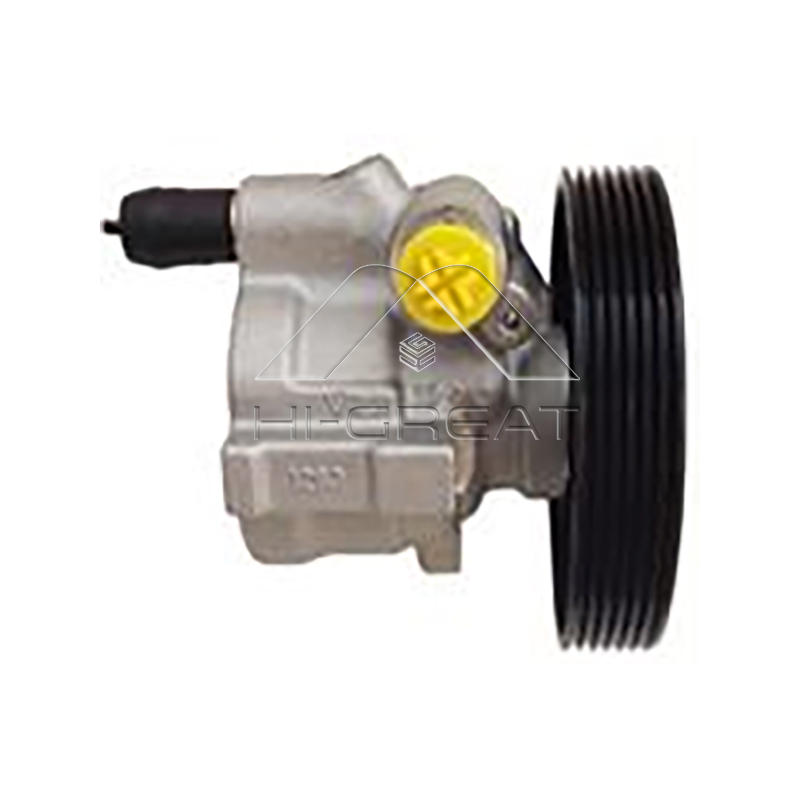

7701055798 OEM Steering Pump for RENAULT ESPACE I (J11_) 2.1 TD (J/S115)

OE No:	7701055798 8200709225 8200889292 8200223611 8973294700 7701052716
HG No:	HGSP0648
Car Series:	France Car
Car Brand:	RENAULT
Car Model:	RENAULT ESPACE I (J11_) 2.1 TD (J/S115)
Warranty:	12 Months

Inquire Now Next Product

Product Description

OE No: 7701055798 8200709225 8200889292 8200223611 8973294700 7701052716

Applicable Models:

RENAULT

ESPACE I (J11_) 2.1 TD (J/S115) J8S 240,J8S 774,J8S 776 1984-1990

ESPACE IV (JK0/1_) 1.9 dCi (JK0U, JK0G) F9Q 680,F9Q 820,F9Q 826 2002-

ESPACE IV (JK0/1_) 2.0 (JK0A, JK1D, JK0N) F4R 796,F4R 797,F4R 896,F4R 897 2005-

ESPACE IV (JK0/1_) 2.0 Turbo (JK0A, JK0B, JK0N) F4R 794,F4R 795,F4R 796,F4R 797 2002-

KANGOO (KC0/1_) 1.5 dCi K9K 704 2003-

KANGOO (KC0/1_) 1.5 dCi (KC08, KC09) K9K 702,K9K 710 2002-

KANGOO (KC0/1_) 1.6 16V 4x4 (KC0P, KC0S, KC0L) K4M 750,K4M 752,K4M 753 2001-

KANGOO Express (FC0/1_) 1.5 dCi (FC07, FC1R) K9K 700,K9K 702,K9K 704 2001-

KANGOO Express (FC0/1_) 1.6 16V 4x4 (FC0L, FC0P, FC0S) K4M 750,K4M 752,K4M 753 2001-

KANGOO Express (FC0/1_) D 55 1.9 (FC0D) F8Q 662 1997-

LAGUNA I (B56_, 556_) 1.6 16V (B568, B561) K4M 720,K4M 724 1997-2001

LAGUNA I Grandtour (K56_) 1.6 16V (K568) K4M 720,K4M 724 1997-2001

LAGUNA II (BG0/1_) 1.9 dCi F9Q 718,F9Q 754 2001-2007

LAGUNA II (BG0/1_) 2.0 16V (BG00, BG0K, BG0P, BG0W) F4R 712,F4R 713,F4R 714,F4R 715 2002-2007

LAGUNA II Grandtour (KG0/1_) 1.9 dCi (KG05) F9Q 664 2004-2005

MEGANE I (BA0/1_) 1.4 16V (BA0D, BA1H, BA0W, BA10) K4J 714,K4J 750 1999-2003

MEGANE I (BA0/1_) 1.8 16V (BA06, BA12, BA1A, BA1M, BA1R) F4P 720,F4P 722 2001-2003

MEGANE I Cabriolet (EA0/1_) 2.0 16V IDE (EA03, EA0P, EA14) F5R 740 1999-2003

MEGANE I Coach (DA0/1_) 2.0 16V IDE (DA03, DA0P, DA14) F5R 740 1999-2003

MEGANE Scénic (JA0/1_) 1.6 e (JA0F) K7M 702,K7M 703 1996-1999

SCÉNIC I MPV (JA0/1_, FA0_) 1.4 16V (JA0D, JA1H, Ja0W, JA10) K4J 714,K4J 750 1999-2003

TRAFIC II Bus (JL) 1.9 dCi (JL0B) F9Q 762 2001-2003

TRAFIC II Platform/Chassis (EL) 1.9 dCi (EL0B) F9Q 762 2001-2003

TRAFIC II Van (FL) 1.9 dCi 100 (FL0C, FL0K, FL0B) F9Q 760 2001-2006

VEL SATIS (BJ0_) 2.0 16V Turbo (BJ0K) F4R 762,F4R 763 2002-2009

VEL SATIS (BJ0_) 3.5 V6 (BJ0R, BJ0V, BJ0U) V4Y 701,V4Y 711,V4Y 715 2002-

NISSAN

PRIMASTAR Bus (X83) 2.0 F4R 720,F4R 722 2001-2006

PRIMASTAR Platform/Chassis (X83) 1.9 dCi 100 F9Q 760 2002-2006

PRIMASTAR Van (X83) 1.9 dCi 100 F9Q 760 2002-

OPEL

MOVANO A Bus (X70) 2.2 DTI (JD) G9T 720,G9T 722,G9T 750 2000-

MOVANO A Platform/Chassis (X70) 2.2 DTI (ED, HD, UD0, UD4) G9T 720,G9T 722,G9T 750 2000-

MOVANO A Platform/Chassis (X70) 2.5 DTi (ED, HD, UD0, UD4) G9U 754 2003-

MOVANO A Van (X70) 2.5 DTi (FD) G9U 754 2003-

VIVARO A Platform/Chassis (X83) 1.9 DTI F9Q 760 2001-2010

VIVARO A Van (X83) 1.9 DTI (F7) F9Q 760 2001-2014

Structure of the Steering Pump

1. Drive wheel 2. Drive shaft 3. Circlip 4. Oil seal 5. Bearing 6. Pump body 7. Steel ball 8. Pressure switch assembly 9.O type sealing ring 10. Pressure plate 11.Stator 12. Blade 13. Rotor 14. Bolt 15. Pump cover 16. Sealing ring 17. Locating pin 18. Protection blockage 19. Bolt 20. Oil inlet pipe 21.O-shaped sealing ring 22. Valve block 23. Spring 24. Slide valve assembly

The steering pump is the core component of a hydraulic power steering (HPS) system, responsible for supplying high-pressure hydraulic fluid to the steering system, thereby assisting the driver in turning the steering wheel with ease.
