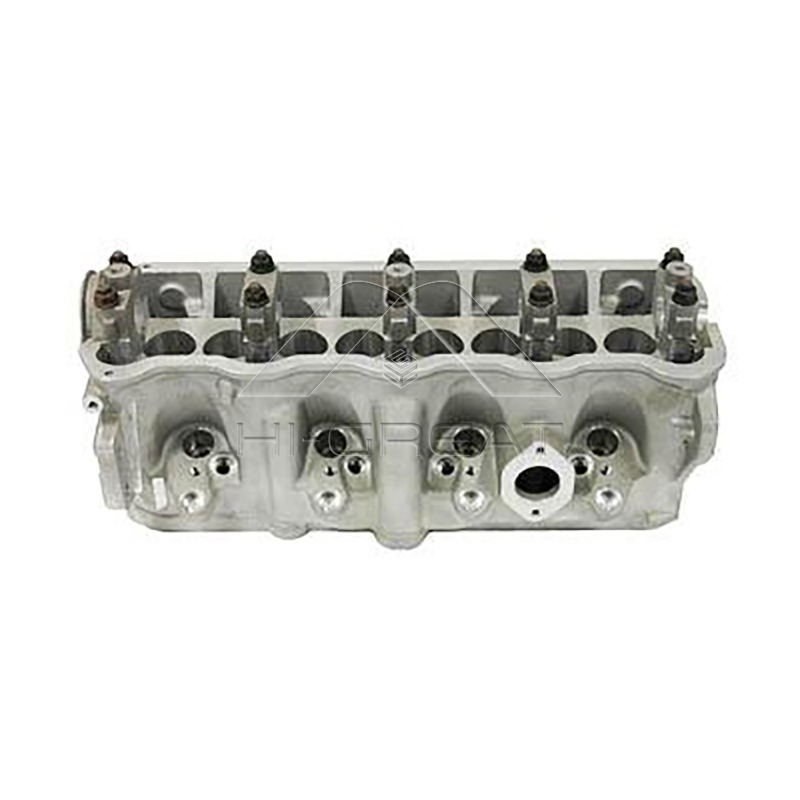

1Z AFN AFF AFD Cylinder Head 028103351F 908051 for VW Golf Passat Santana Seat Alhambra

Engine Code:	1Z AFN AFF AFD AAH ADE AEY AHB
HG No:	HGCH0199
Car Series:	German Car
Car Brand:	VW/SEAT
Car Model:	VW Golf Passat Santana Seat Alhambra

Inquire Now Next Product

Product Description

OEM NO:028103351F 028103351 028103351K 028103351P

REF NO:908051 908702

Applicable Models:

Iveco

DAILY III Platform/Chassis 1998-2009

DAILY III Van 1999-2009

Fiat

Ducato Bus (230) 1994-2005

Ducato Bus (244, Z_) 2001-

Ducato Truck (230) 1994-2002

Ducato Truck (244) 2001-

Ducato Box Van (230L) 1994-2005

Ducato Box Van (244) 2001-

Cylinder Head Structure diagram

3.0TDI 1KD-FTV Engine 11101-30030 11101-30050 Cylinder Head Assembly for Toyota Hilux Land Cruiser

The image shows the detailed construction of a cylinder head assembly, a key component of an internal combustion engine that houses precision parts controlling intake and exhaust gas flow within the combustion chamber.

Key elements include the camshaft, which actuates the valve rocker arms through the rocker shaft, transferring motion to open and close the valves at precise timing intervals. The valve clearance adjusters ensure optimal valve lash for consistent performance and durability, while the valve springs and valve retainers maintain proper valve seating during engine operation.

Additional features, such as the stud holes for securing the head to the engine block and the housing for the thermostat, support structural integrity and cooling system integration. Altogether, these components enable efficient combustion, improved airflow dynamics, and overall engine reliability.
