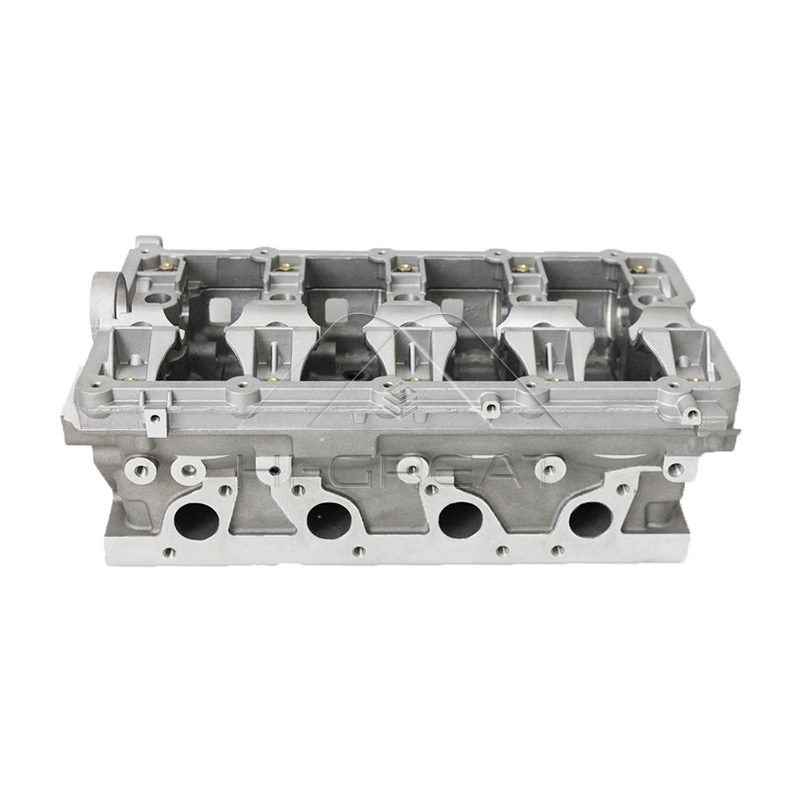

AZV BKD BMN Cylinder Head 03G103264BX 03G103351E VW Bora Jetta Skoda Octavia Seat Aitea

Engine Code:	AZV BKD BMN
HG No:	HGCH0203
Car Series:	German Car
Car Brand:	VW/SEAT/SKODA
Car Model:	VW Bora Jetta Skoda Octavia Seat Aitea

Inquire Now Next Product

Product Description

OEM NO:03G103351B 03G103264BX 03G103264CX 03G103264DX 03G103264EX 03G103264GX 03G103351E 03G103264FX

REF NO:908711 908718

Applicable Models:

Mitsubishi

Grandis MPV (—) 2003-2011

Lancer VIII (CY_A CZ_A) 2007-

Lancer VIII Sportback (CX_A) 2007-

Outlander (CW_W) 2005-2012

Outlander Van (CW_W) 2006-2012

Jeep

Compass SUV (—) 2006-

Patriot (MK74) 2007-2017

Volkswagen

Golf V Hatchback (5M1) 2004-2013

Golf V Hatchback (1K1) 2003-2010

Golf V Variant (—) 2007-2009

Jetta III Sedan (1K2) 2004-2013

Passat Sedan (3C2) 2005-2011

Passat Variant (3C5) 2005-2011

Touran (1T1 1T2) 2003-2011

Audi

A3 Hatchback (8P1) 2003-2013

A3 Hatchback (8PA) 2004-2015

A4 Sedan (8EC) 2004-2009

A4 Avant (8ED) 2004-2008

A6 Sedan (4F2) 2004-2011

A6 Avant (4F5) 2004-2011

Skoda

Octavia Hatchback (1Z3) 2004-2013

Octavia Estate (1Z5) 2004-2013

Superb Sedan (3T) 2008-2015

Superb II Estate (3T5) 2009-2015

Seat

Altea MPV (5P1) 2004-2015

Altea XL MPV (5P5) 2006-2015

Leon Hatchback (1P1) 2005-2013

Toledo III MPV (5P2) 2004-2009

Dodge

Avenger Sedan (—) 2007-2014

Caliber MPV (—) 2006-

Cylinder Head Structure diagram

3.0TDI 1KD-FTV Engine 11101-30030 11101-30050 Cylinder Head Assembly for Toyota Hilux Land Cruiser

The image shows the detailed construction of a cylinder head assembly, a key component of an internal combustion engine that houses precision parts controlling intake and exhaust gas flow within the combustion chamber.

Key elements include the camshaft, which actuates the valve rocker arms through the rocker shaft, transferring motion to open and close the valves at precise timing intervals. The valve clearance adjusters ensure optimal valve lash for consistent performance and durability, while the valve springs and valve retainers maintain proper valve seating during engine operation.

Additional features, such as the stud holes for securing the head to the engine block and the housing for the thermostat, support structural integrity and cooling system integration. Altogether, these components enable efficient combustion, improved airflow dynamics, and overall engine reliability.
