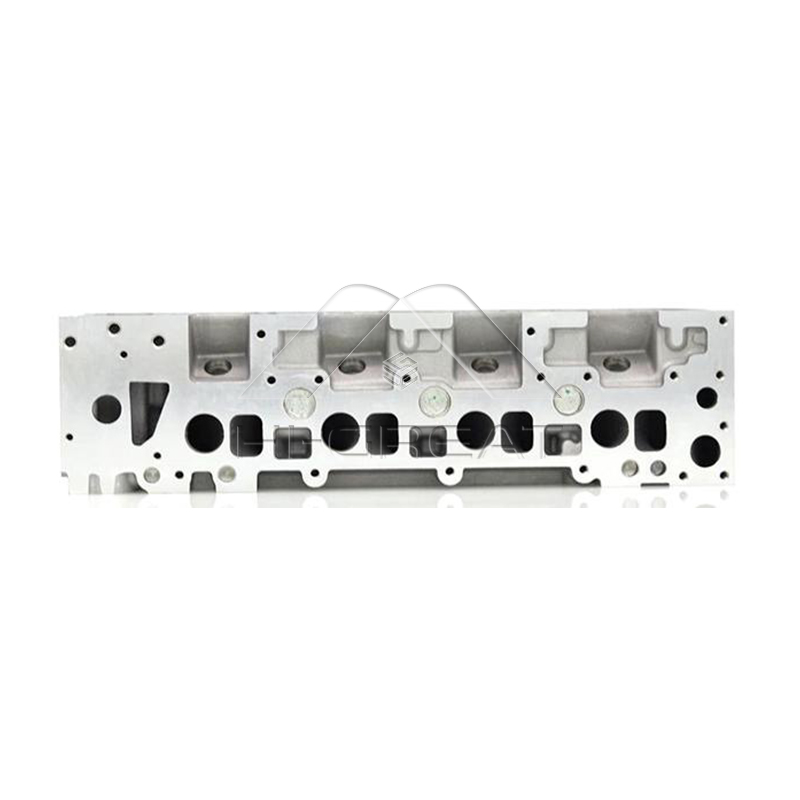

OM611 OM646 Engine Cylinder Head 908572 6110104420 for Mercedes Benz C-Class Sprinter Vito

Engine Code:	OM611 OM646
HG No:	HGCH0228
Car Series:	German Car
Car Brand:	MERCEDES-BENZ
Car Model:	Mercedes Benz C-Class Sprinter Vito

Inquire Now Next Product

Product Description

OEM NO:6110102320 6110104420 6110105420 6110106620 6110100920 6110103620 6110105020 6460100620 6460101020 6460101420 6460100820 6460101120

REF NO:908572 908573 908577 908574 908720

Applicable Models:

Mercedes-Benz
Sprinter 2-t Bus (901,902) 1995-2006
Sprinter 2-t Truck (901,902) 1995-2006
Sprinter 2-t Box Body (901,902) 1995-2006
Sprinter 3-t Bus (903) 1995-2012
Sprinter 3-t Truck (903) 1995-2012
Sprinter 3-t Box Body (903) 1995-2012
Sprinter 4-t Bus (904) 1996-2006
Sprinter 4-t Truck (904) 1995-2012
Sprinter 4-t Box Body (904) 1995-2012
V-Class MPV (638/2) 1996-2003
Vito Bus (638) 1996-2003
Vito Box Body (638) 1997-2003

Cylinder Head Structure diagram

3.0TDI 1KD-FTV Engine 11101-30030 11101-30050 Cylinder Head Assembly for Toyota Hilux Land Cruiser

The image shows the detailed construction of a cylinder head assembly, a key component of an internal combustion engine that houses precision parts controlling intake and exhaust gas flow within the combustion chamber.

Key elements include the camshaft, which actuates the valve rocker arms through the rocker shaft, transferring motion to open and close the valves at precise timing intervals. The valve clearance adjusters ensure optimal valve lash for consistent performance and durability, while the valve springs and valve retainers maintain proper valve seating during engine operation.

Additional features, such as the stud holes for securing the head to the engine block and the housing for the thermostat, support structural integrity and cooling system integration. Altogether, these components enable efficient combustion, improved airflow dynamics, and overall engine reliability.
