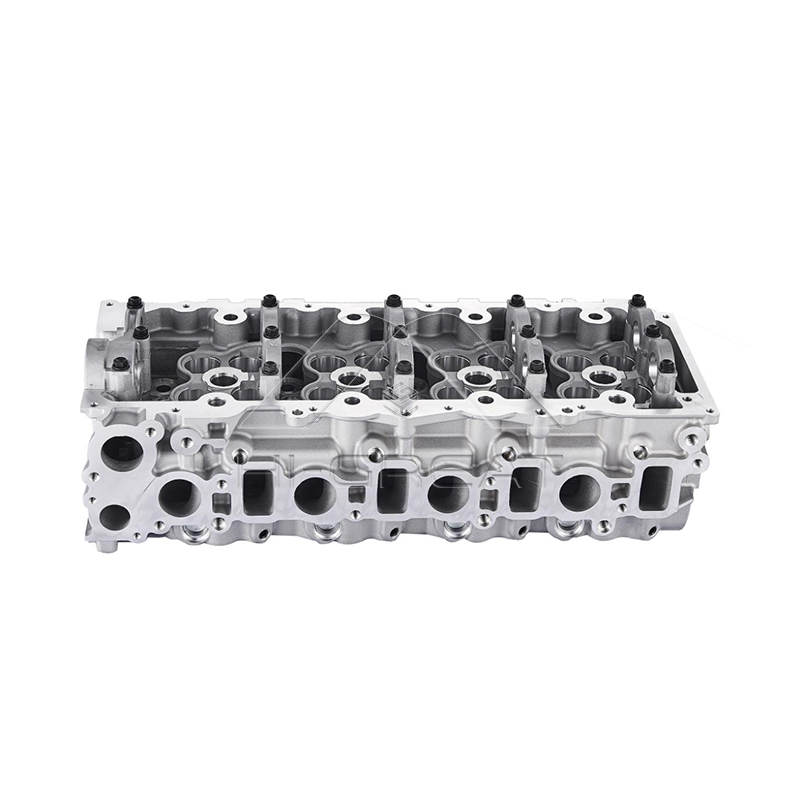

3.0TDI 1KD-FTV Engine 11101-30030 11101-30050 Cylinder Head for Toyota Hilux Land Cruiser

Engine Code:	1KD-FTV
HG No:	HGCH0001
Car Series:	Japanese Car
Car Brand:	TOYOTA
Car Model:	Toyota Hilux Land Cruiser

Inquire Now Next Product

Product Description

OEM NO:11101-30050 11101-30030 11101-30080 11101-30031 11101-30032

Applicable Models:

Toyota
HILUX VII Pickup (N1, N2, N3) 3.0 D-4D 4WD (KUN26) 2005-2015 1KD-FTV 2982 cc 126 kW
LAND CRUISER 90 (J9) 3.0 D-4D 4WD (KDJ90_, KDJ95_, KDJ90W, KDJ95W) 2000-2002 1KD-FTV 2982 cc 120 kW
LAND CRUISER PRADO (J12) 3.0 D-4D (KDJ120, KDJ125, KDJ121) 2002-2010 1KD-FTV 2982 cc 127 kW
LAND CRUISER PRADO (J12) 3.0 D-4D (KDJ120, KDJ125) 2002-2009 1KD-FTV 2982 cc 120 kW
LAND CRUISER PRADO (J12) 3.0 D-4D (KDJ120, KDJ125) 2004-2009 1KD-FTV 2982 cc 122 kW
LAND CRUISER PRADO (J15) 3.0 D-4D (KDJ150_, KDJ150, KDJ155) 2009– 1KD-FTV 2982 cc 127 kW
LAND CRUISER PRADO (J15) 3.0 D-4D (KDJ155_, KDJ150_, KDJ150R, KDJ155R) 2009– 1KD-FTV 2982 cc 140 kW

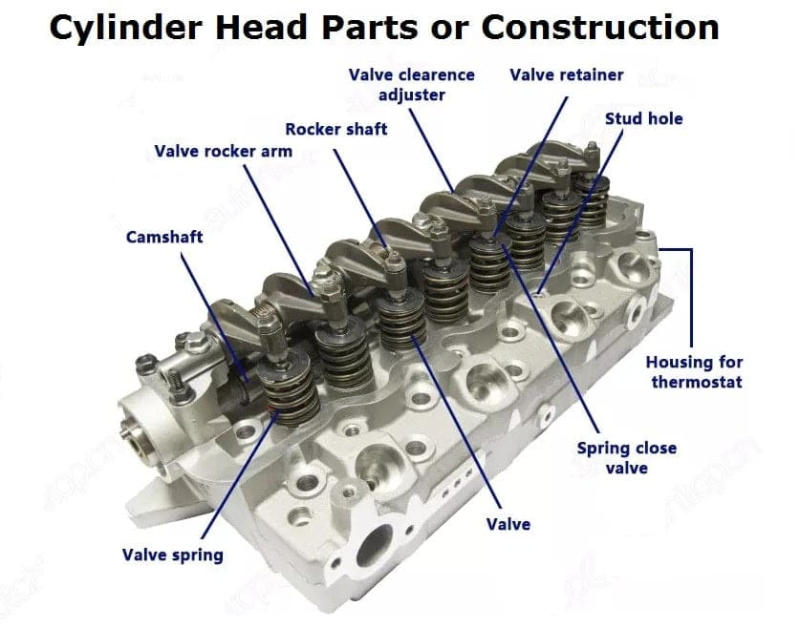

Cylinder Head Structure diagram

3.0TDI 1KD-FTV Engine 11101-30030 11101-30050 Cylinder Head Assembly for Toyota Hilux Land Cruiser

The image shows the detailed construction of a cylinder head assembly, a key component of an internal combustion engine that houses precision parts controlling intake and exhaust gas flow within the combustion chamber.

Key elements include the camshaft, which actuates the valve rocker arms through the rocker shaft, transferring motion to open and close the valves at precise timing intervals. The valve clearance adjusters ensure optimal valve lash for consistent performance and durability, while the valve springs and valve retainers maintain proper valve seating during engine operation.

Additional features, such as the stud holes for securing the head to the engine block and the housing for the thermostat, support structural integrity and cooling system integration. Altogether, these components enable efficient combustion, improved airflow dynamics, and overall engine reliability.
