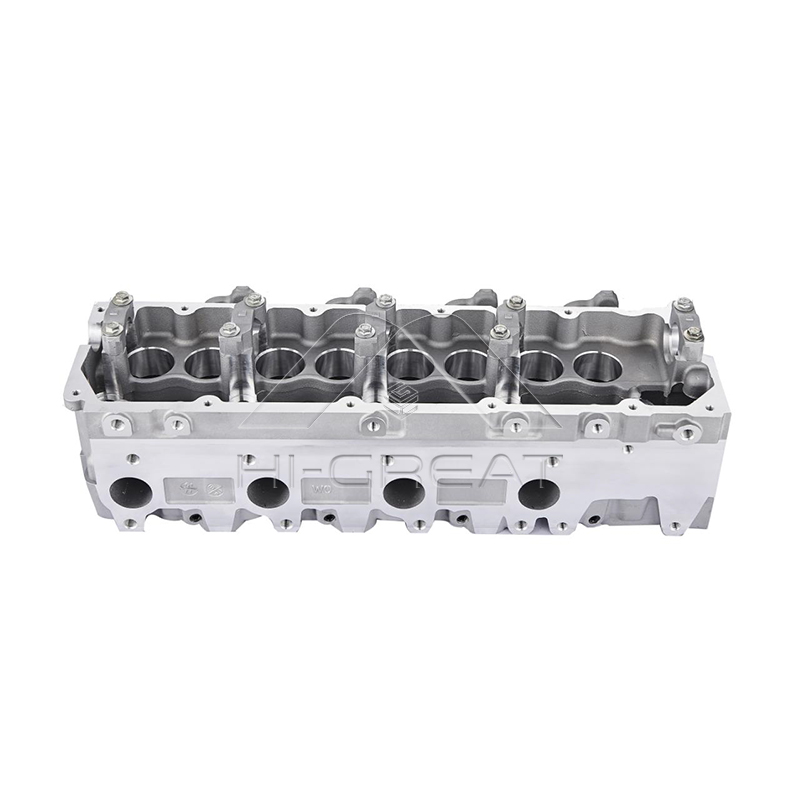

1KZ-T 1KZ-TE Cylinder Head for Toyota 4Runner Hilux Land Cruiser Engine 1110169175 1110169128

Engine Code:	1KZ-T 1KZ-TE
HG No:	HGCH0009
Car Series:	Japanese Car
Car Brand:	TOYOTA
Car Model:	Toyota 4Runner Hilux Land Cruiser

Inquire Now Next Product

Product Description

OEM NO:1110169125 1110169126 1110169127 1110169128 1110169175

Applicable Models:

Toyota

4 RUNNER II (N13) 3.0 TD (KZN130_, KZN130G, KZN130W) 1993–1996 1KZ-T 2982 92

4 RUNNER III (N18) 3.0 TD (KZN185) 1995–2002 1KZ-T 2982 92

4 RUNNER SUV (N130) 1987–1996

4 RUNNER SUV 1995–2003

GRANVIA (H2, H1) 1995–2004

HILUX II SUV (N13) 1988–1998

HILUX Platform/Chassis (LN, N1) 1983–2005

HILUX VI Pickup (N1) 1994–2006

Land Cruiser Suv (J7) 1984–

Land Cruiser Prado Suv (J9) 1995–2003

Land Cruiser Hardtop Off-Road Vehicle (J7) 1984–2001

Land Cruiser Prado Suv (J12) 2002–2010

Cylinder Head Structure diagram

3.0TDI 1KD-FTV Engine 11101-30030 11101-30050 Cylinder Head Assembly for Toyota Hilux Land Cruiser

The image shows the detailed construction of a cylinder head assembly, a key component of an internal combustion engine that houses precision parts controlling intake and exhaust gas flow within the combustion chamber.

Key elements include the camshaft, which actuates the valve rocker arms through the rocker shaft, transferring motion to open and close the valves at precise timing intervals. The valve clearance adjusters ensure optimal valve lash for consistent performance and durability, while the valve springs and valve retainers maintain proper valve seating during engine operation.

Additional features, such as the stud holes for securing the head to the engine block and the housing for the thermostat, support structural integrity and cooling system integration. Altogether, these components enable efficient combustion, improved airflow dynamics, and overall engine reliability.
