At first glance, a car’s steering system may appear straightforward. However, it actually consists of multiple components with distinct designs, materials, and functions that work together to convert the driver’s steering input into precise vehicle movement and control.

This overview provides a technical look at automotive steering systems, focusing on their structure, key components, operational principles, main types, and appropriate manufacturing methods.

What Is a Car Steering System?

A car’s steering system consists of interconnected components that work together to interpret the driver’s input and control the vehicle’s direction. It transforms the rotational motion of the steering wheel into the lateral movement of the front wheels.

The primary function of the steering system is to change the direction of the vehicle. In addition, it enhances stability while turning by ensuring the wheels follow accurate paths. The system also provides tactile feedback from the road surface, allowing the driver to sense driving conditions and maintain better control.

Components of the Car Steering System

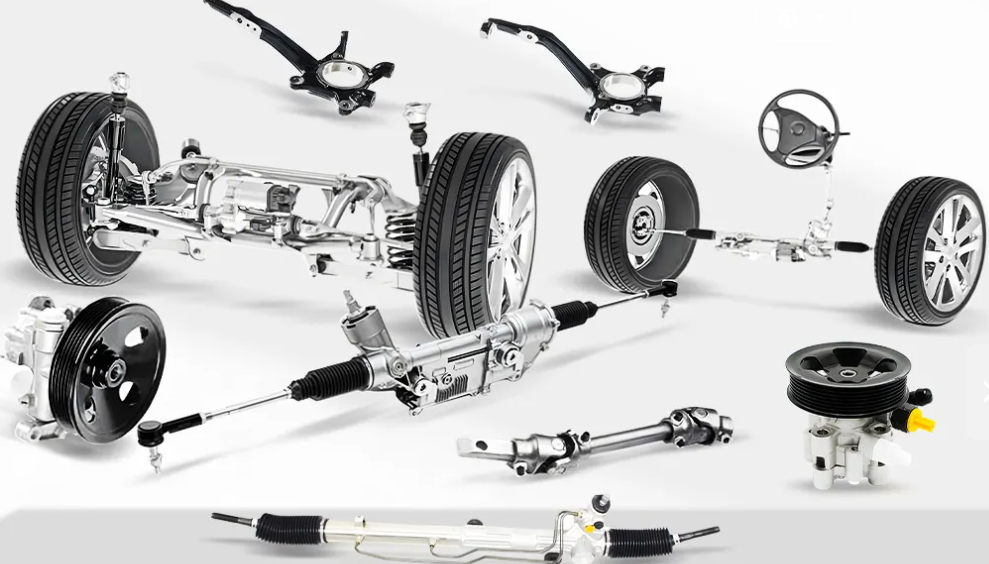

The steering system consists of several interconnected parts that work together to convert driver input into vehicle movement. The key components include:

• Steering Wheel: Serves as the driver’s control interface, transmitting input through the steering column.

• Steering Column and Shaft: Connects the steering wheel to the gear mechanism, often featuring joints that compensate for alignment variations between the wheel and the steering gear.

• Steering Gear: Converts the steering wheel’s rotational motion into the lateral motion required to turn the vehicle’s wheels.

• Tie Rods: Connect the steering gear to the steering knuckles, maintaining wheel alignment and absorbing shocks during operation.

• Steering Knuckles: Link the wheels to the suspension system and pivot in response to steering input, allowing directional changes.

These components are present in all steering systems. However, specific systems include additional parts — such as the hydraulic pump in hydraulic power steering (HPS) systems, which provides pressure for steering assistance, and the electric motor in electric power steering (EPS) systems, which delivers torque support.

How Steering Works

At its core, a car’s steering system transforms the driver’s rotational input on the steering wheel into the angular movement of the wheels. The exact mechanism varies depending on the steering system type.

In the rack-and-pinion steering system — known for its simplicity, precision, and minimal component count — the steering wheel connects to a shaft attached to a small gear called the pinion. The pinion’s teeth mesh directly with a flat, toothed metal bar known as the rack.

When the driver turns the steering wheel, the pinion rotates and slides the rack to the left or right, depending on the direction of rotation. The rack, linked to the front wheels through tie rods, transfers this linear motion to adjust the wheels’ angles relative to the vehicle body.

As the rack moves, it pushes or pulls the tie rods, which in turn pivot the steering knuckles, causing the wheels to turn.

More advanced systems — such as hydraulic power steering (HPS) or electric power steering (EPS) — build upon this basic mechanism by adding hydraulic pumps, electric motors, and sensors to enhance responsiveness, reduce driver effort, and improve steering comfort.

For example, during a right turn, when the driver rotates the steering wheel clockwise, the pinion turns accordingly, moving the rack to the right. This motion is transmitted through the tie rods, pivoting the steering knuckles and directing the front wheels to the right.

Types of Steering Systems

Car steering systems can be categorized according to their operating principles — from basic manual systems to sophisticated power-assisted mechanisms. Below are the most common types used in modern vehicles.

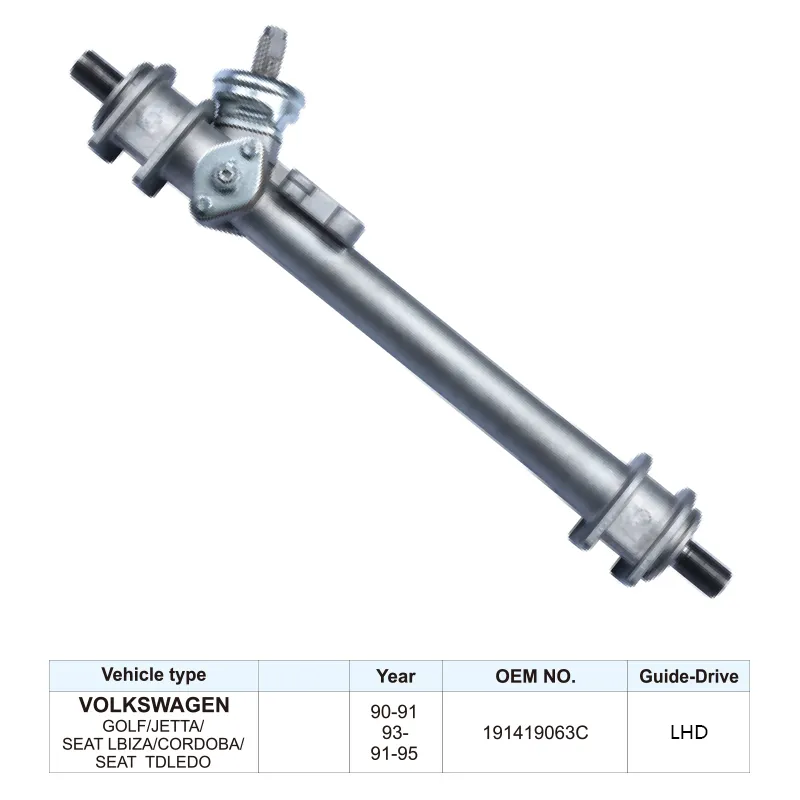

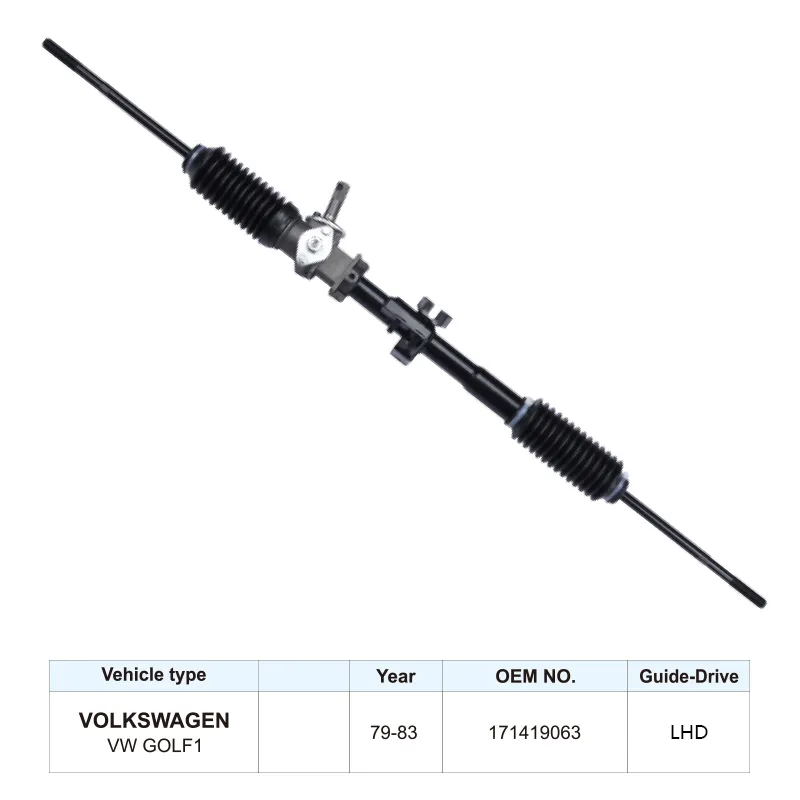

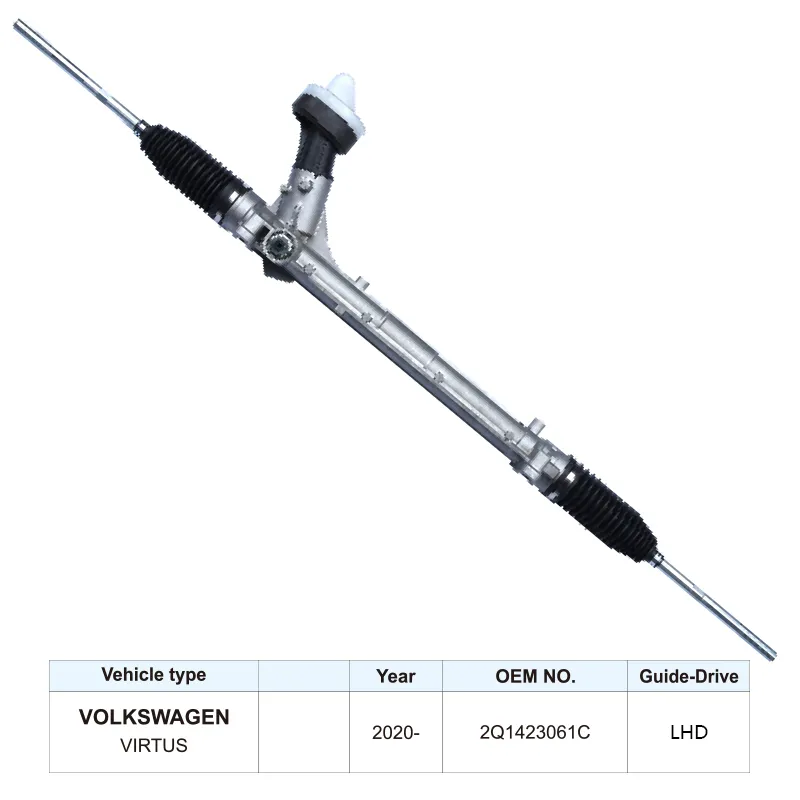

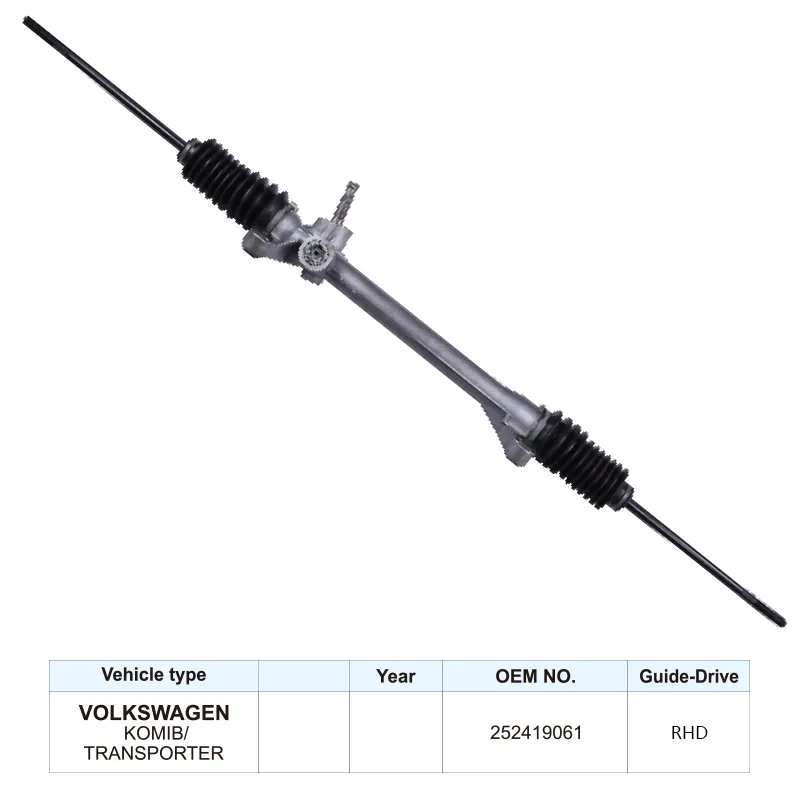

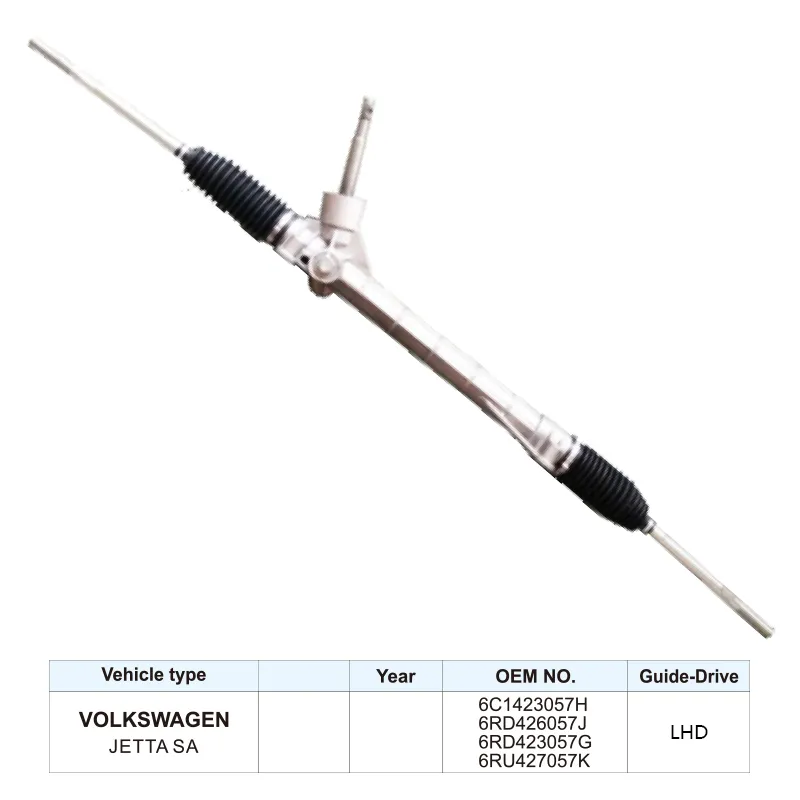

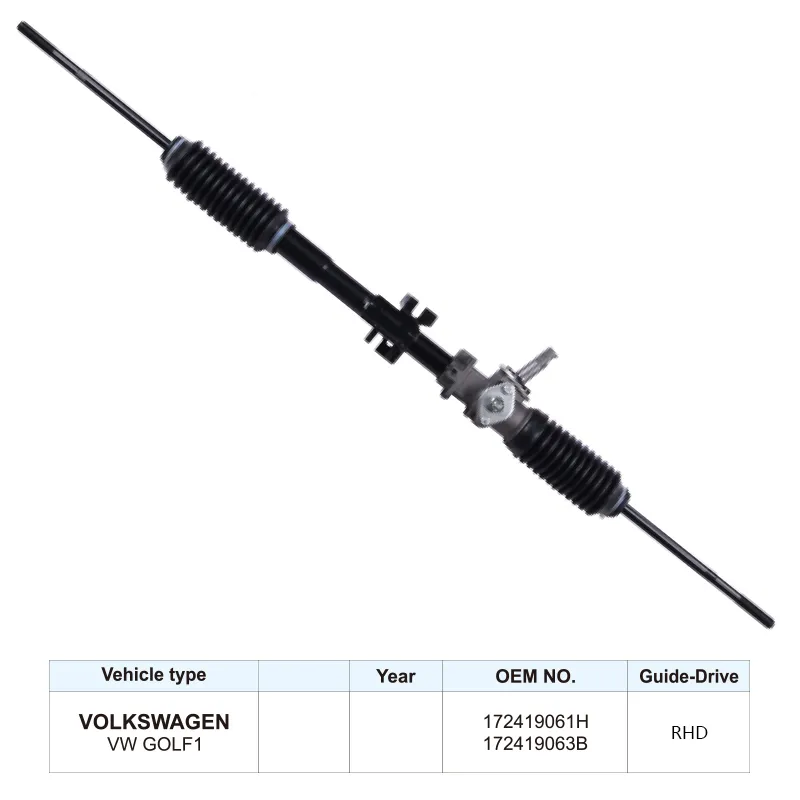

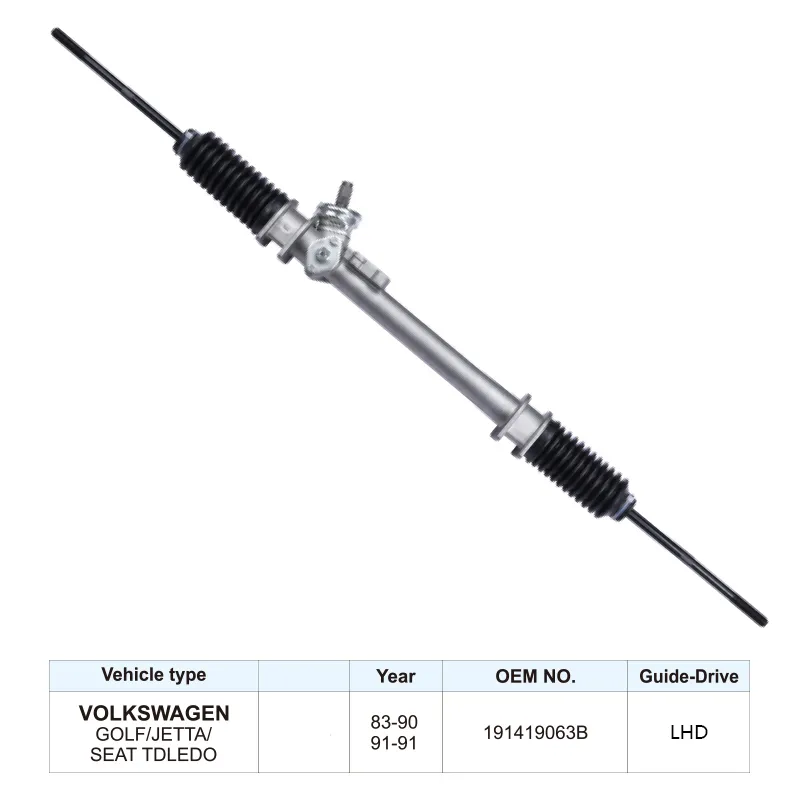

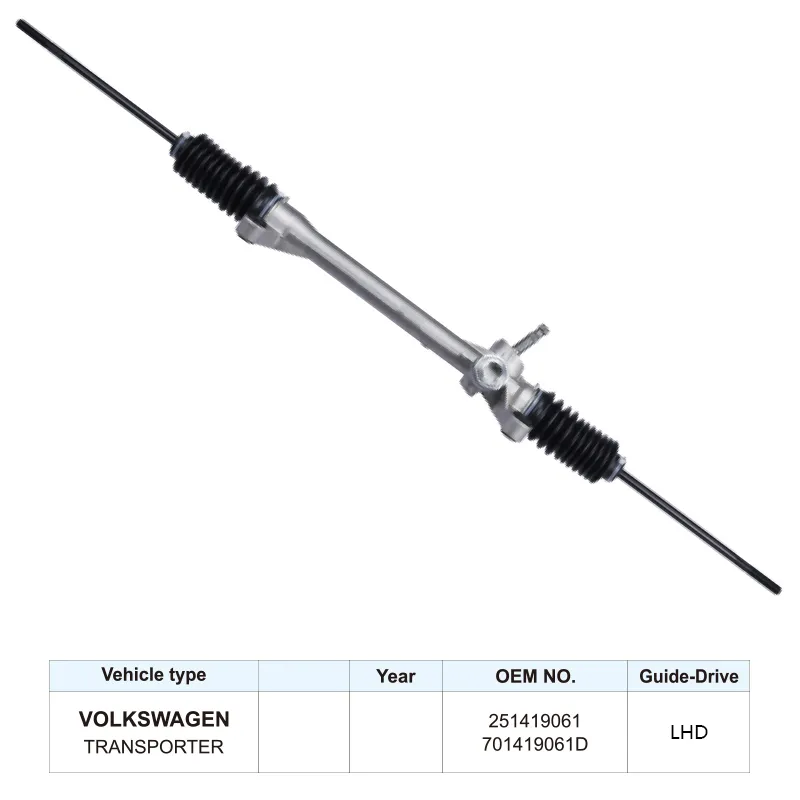

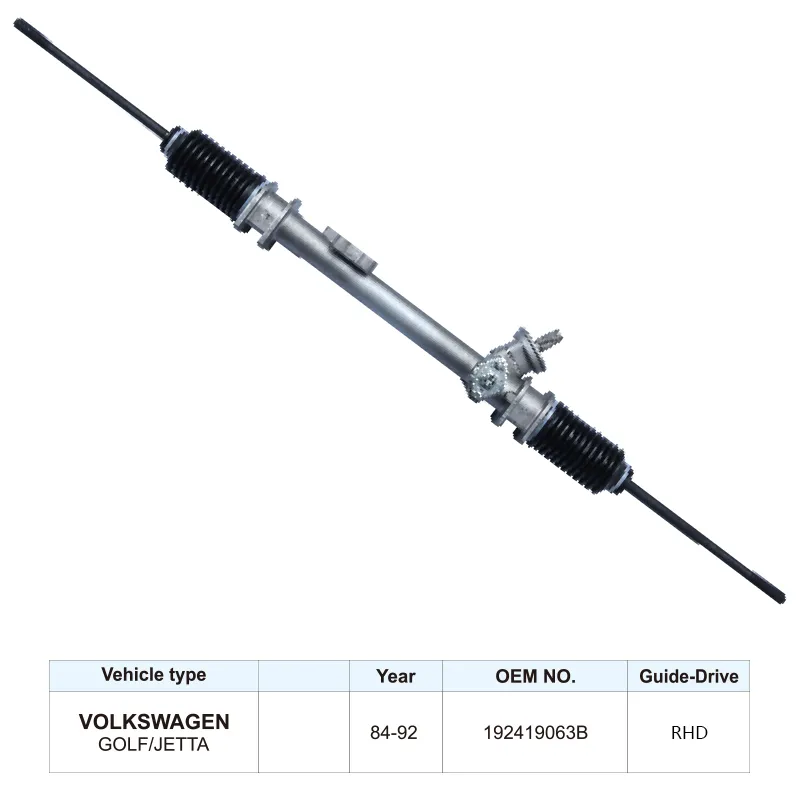

Rack and Pinion Steering System

The rack and pinion steering system is one of the most widely used due to its simplicity, compact structure, and responsive performance. It comprises a steering shaft, pinion gear, rack, and tie rods that work together to translate steering input into wheel movement.

When the driver turns the steering wheel, the connected shaft rotates the pinion gear. The pinion meshes with the rack — a straight metal bar with teeth — and moves it laterally. This movement is then transmitted through the tie rods to adjust the wheel angle relative to the vehicle’s chassis.

Because of its precision and minimal play, the rack and pinion system is ideal for passenger cars and high-performance vehicles, where responsive handling is essential.

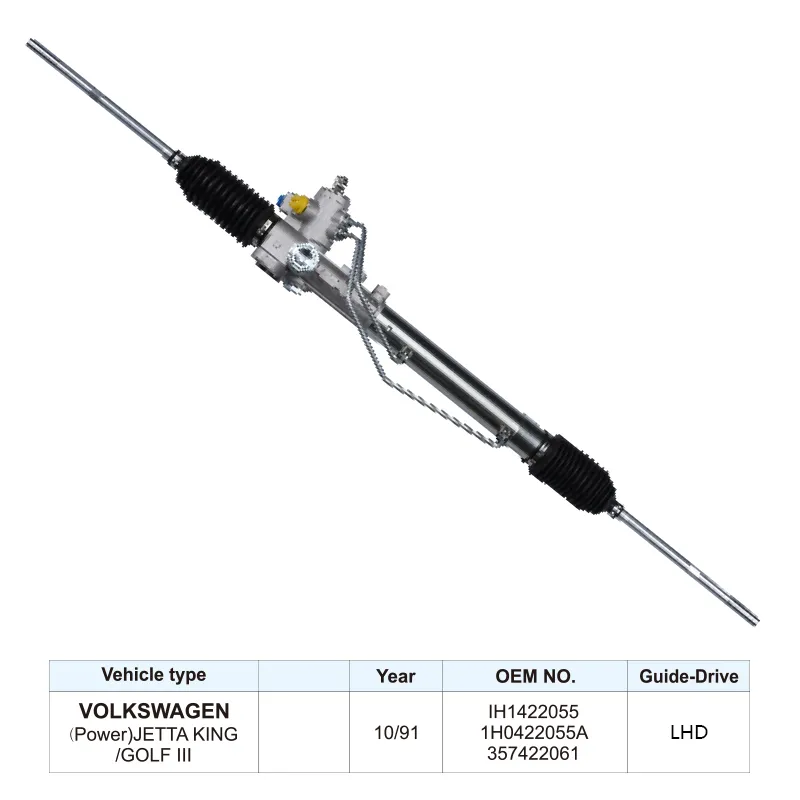

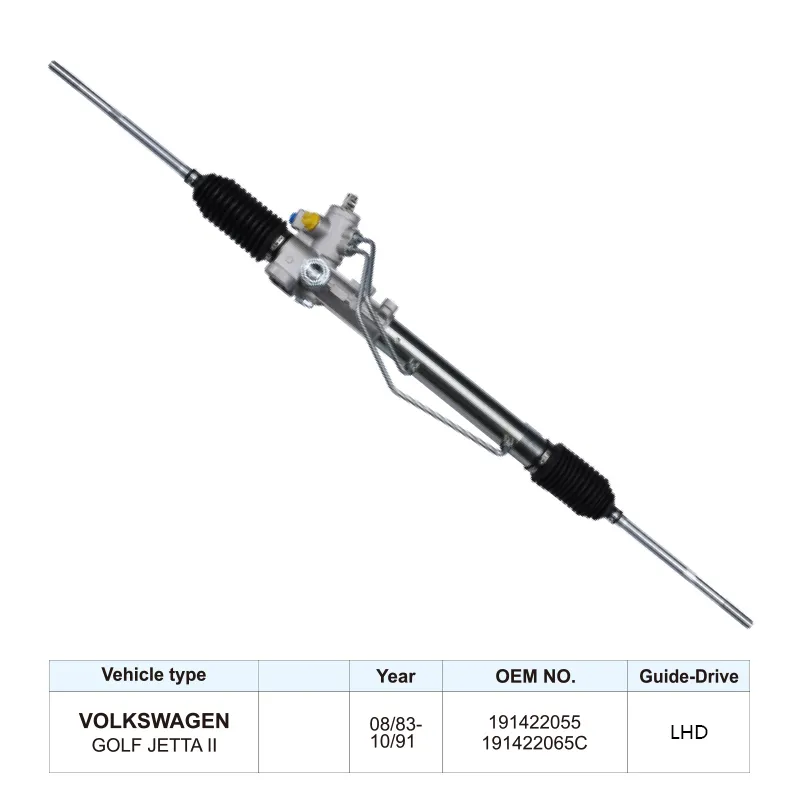

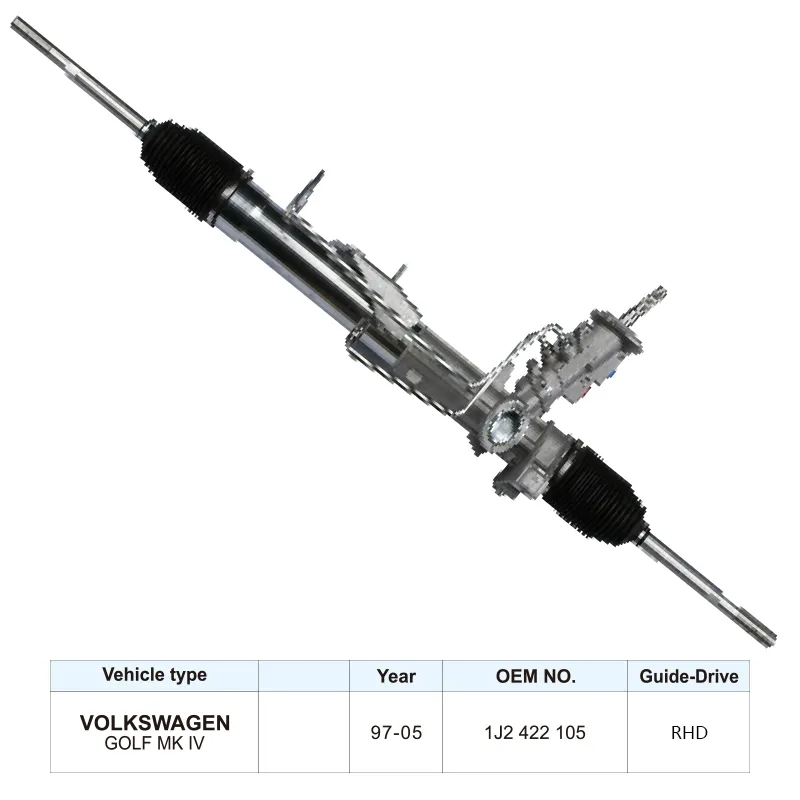

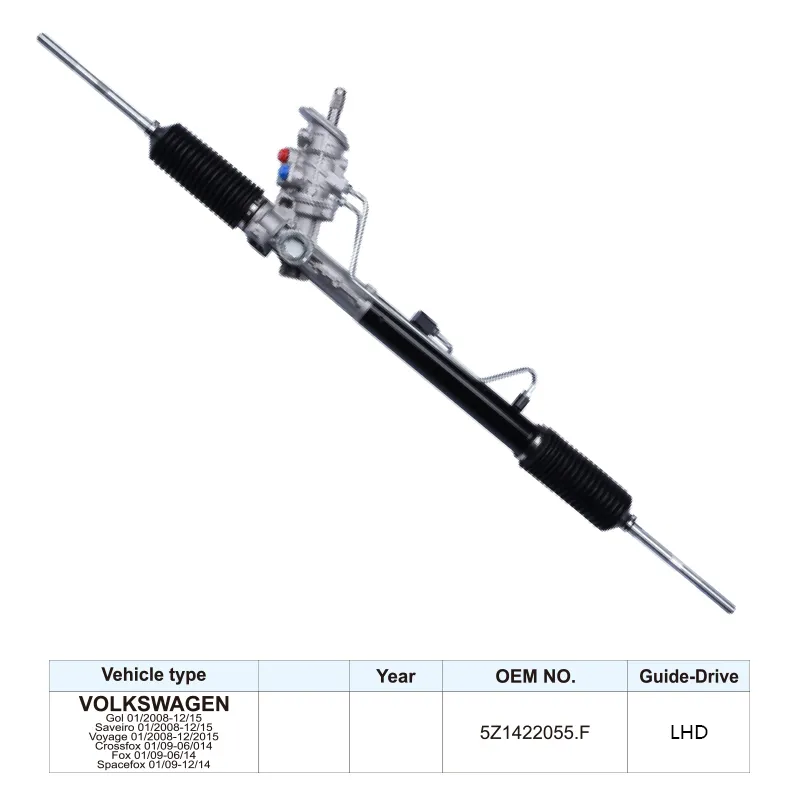

Power Steering System

Power steering systems reduce the physical effort required by the driver to steer, using either hydraulic or electric assistance. The two main variations are Hydraulic Power Steering (HPS) and Electric Power Steering (EPS).

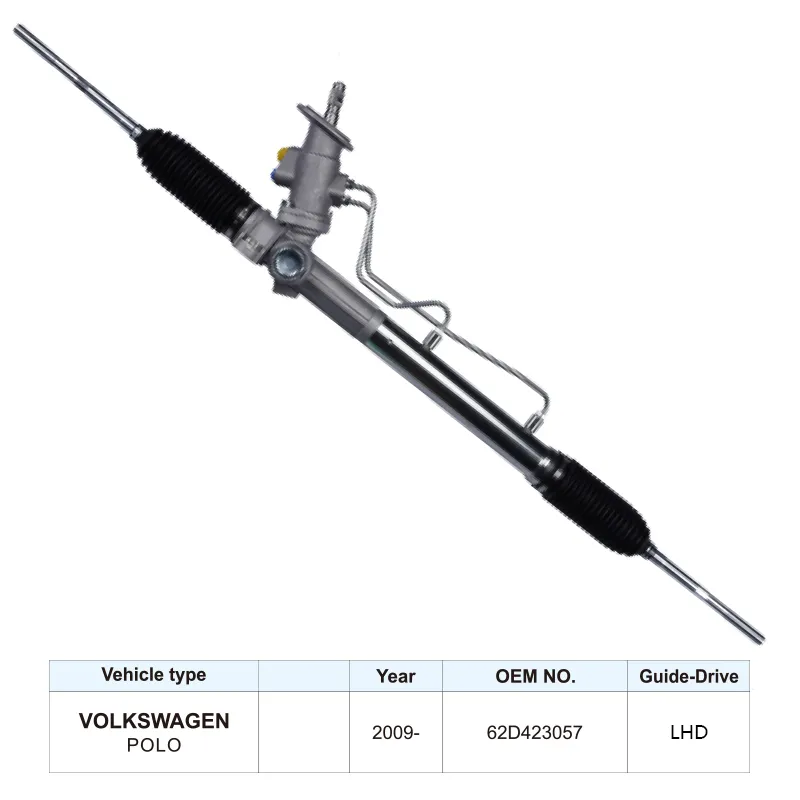

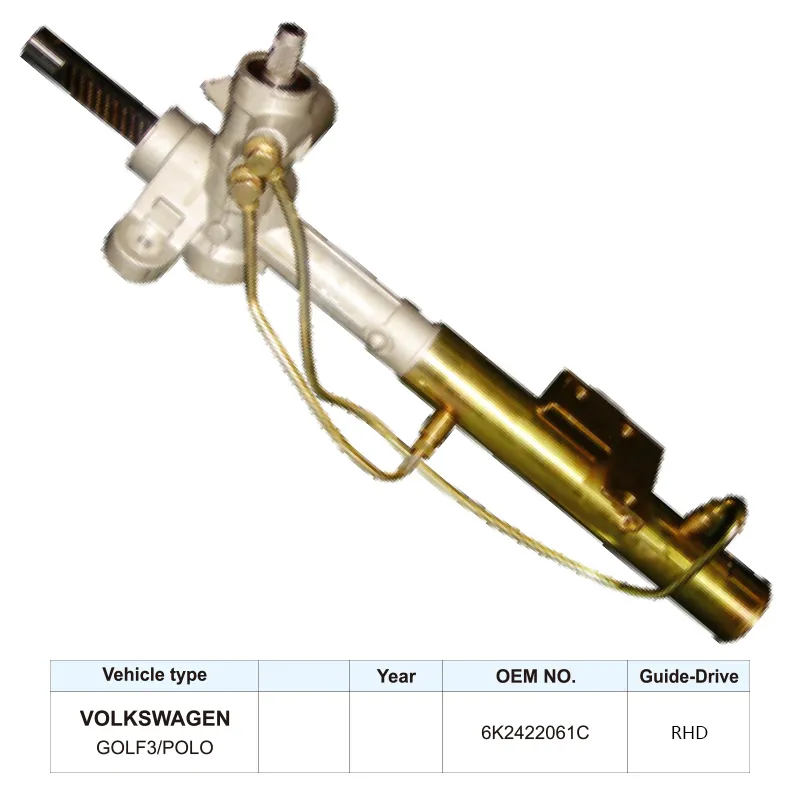

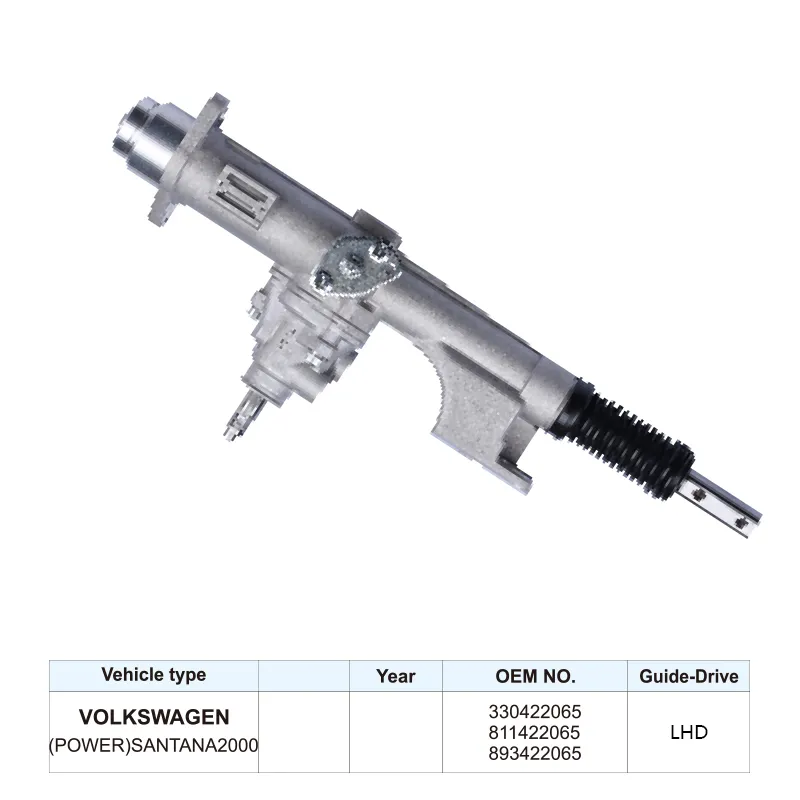

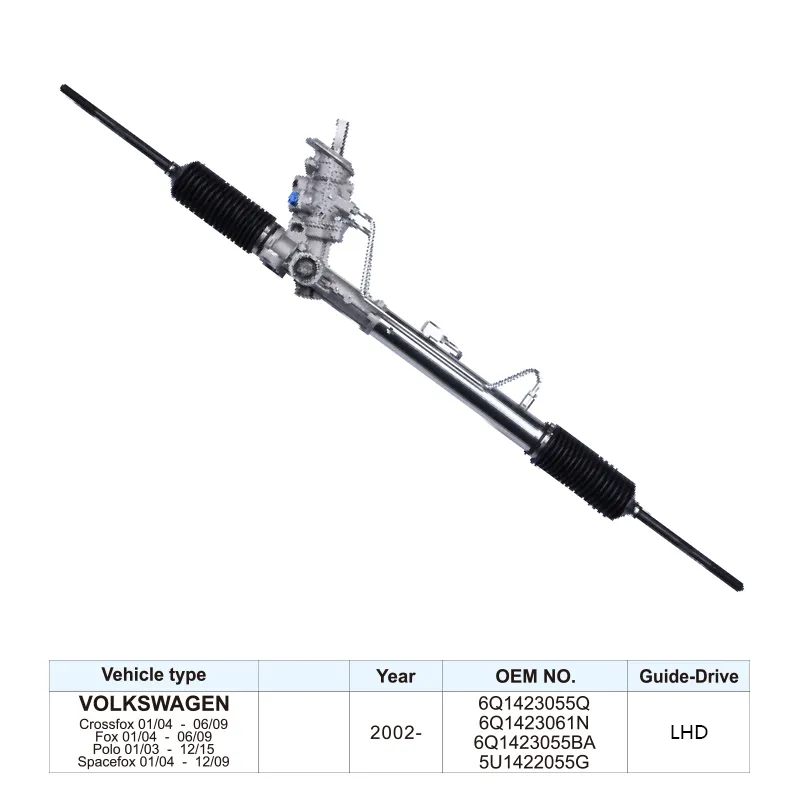

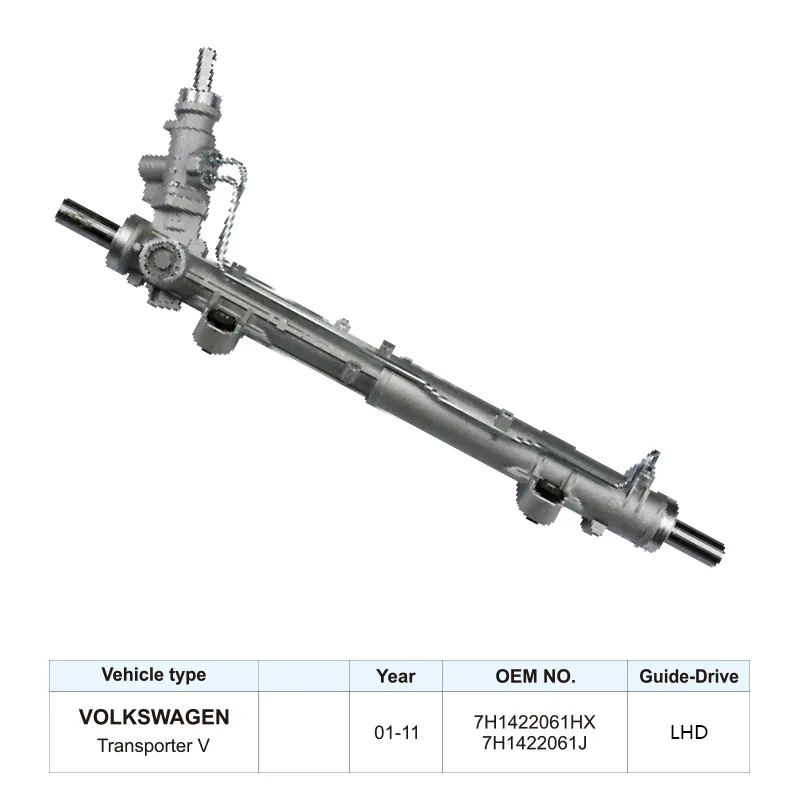

• Hydraulic Power Steering (HPS): Uses an engine-driven hydraulic pump that pressurizes fluid to assist steering. A control valve directs the pressurized fluid to either side of a piston connected to the steering rack, helping turn the wheels with less effort.

• Electric Power Steering (EPS): Replaces hydraulic components with an electric motor controlled by sensors and an electronic control unit (ECU). EPS provides torque assistance precisely when needed, adapting to vehicle speed and driving conditions while improving fuel efficiency.

Recirculating Ball Steering System

The recirculating ball steering system is known for its strength and durability, making it common in trucks, SUVs, and heavy-duty vehicles. It features a worm gear mechanism inside a housing filled with ball bearings. When the steering wheel turns, the worm gear rotates, moving the ball bearings along a channel. These bearings engage with a sector gear connected to the pitman arm, which then pivots the steering linkage to turn the wheels.

This system’s design minimizes friction and wear, making it particularly suitable for vehicles requiring higher steering loads and durability under rugged conditions.

Manufacturing Processes for Auto Steering Components

The manufacturing of automotive steering components involves multiple processes tailored to the materials, geometry, and functional requirements of each part. Precision and consistency are critical, regardless of the specific production method. Common processes include CNC machining, metal casting, injection molding, and 3D printing for prototyping.

CNC Machining

CNC machining is widely used in producing critical steering components such as gears, shafts, and tie rods. The process ensures tight dimensional accuracy, with tolerances achievable within micrometers.

Common CNC techniques include milling and turning, both capable of shaping complex geometries with high repeatability. Machined components are often further finished through processes like grinding or surface coating to enhance wear resistance and ensure smooth mechanical motion in the steering system.

Metal Casting

Metal casting is ideal for producing robust and complex steering components such as housings, knuckles, and gear blanks. Among casting methods, die casting and sand casting are most common due to their precision and scalability.

These processes typically use materials such as cast iron and aluminum alloys, which offer a balance of strength and machinability. Post-casting heat treatment is often applied to refine grain structure, improve hardness, and enhance the component’s durability under load.

Injection Molding

Injection molding is primarily used for non-metallic steering components, including motor covers, housings, and insulation parts. The process involves injecting molten thermoplastic material into a precision-engineered mold to form the desired shape.

This method supports high-strength polymers with excellent corrosion resistance and dimensional stability. Using thermoplastics helps reduce overall system weight and minimize vibration and noise — key benefits in modern steering designs.

3D Printing

3D printing (additive manufacturing) plays a vital role in rapid prototyping and low-volume production of steering components. It enables manufacturers to create complex geometries that are difficult or costly to produce with conventional methods.

Prototypes, such as steering gears or housings, are often printed using nylon or resin materials to validate fit and function before mass production. The fast iteration cycle allows engineers to optimize designs efficiently without the need for expensive tooling.

Overall, combining these processes ensures both precision and reliability in automotive steering systems — from prototype development to full-scale manufacturing.

Common Car Steering System Parts and Their Manufacturing Processes

Each component of a car steering system requires specific materials and manufacturing methods to achieve the strength, precision, and reliability needed for safe vehicle operation. Below are the main components, their material composition, and the corresponding manufacturing processes.

Steering Wheel

The steering wheel typically has a metal core made from steel or aluminum, providing structural strength, and an outer covering made from polyurethane, leather, or wood for comfort and aesthetics.

• Metal core: produced through die casting (for aluminum) or forging (for steel) to achieve rigidity.

• Outer covering: made by injection molding for polyurethane, while leather or wood finishes are applied manually through wrapping or lamination.

Steering Column and Shaft

The steering shaft is made of high-strength steel with a hardened or chrome-plated surface for wear resistance. The steering column is usually made of steel or aluminum.

• Steering shaft: manufactured using CNC turning, followed by heat treatment to enhance strength and fatigue resistance.

• Steering column: shaped by roll forming or extrusion (for aluminum) and then CNC machined for precision fit.

Steering Gear

The steering gear comprises precision-cut steel gears and a housing made from cast iron or aluminum.

• Gears: produced using CNC machining (gear hobbing or shaping) and carburizing heat treatment for surface hardness and durability.

• Housing: made via die casting (for aluminum) or sand casting (for cast iron), followed by precision machining to meet dimensional tolerances.

Tie Rods

The tie rods are made from steel alloys coated with zinc or chrome for corrosion protection. The assembly includes ball joints made of hardened steel and bushings made of plastic or rubber.

• Tie rod and ball joint: produced through forging and CNC machining to achieve the required strength and dimensional accuracy.

• Bushings: formed using injection molding, ensuring flexibility and vibration damping.

Steering Knuckles

Steering knuckles are critical load-bearing parts, commonly made from cast iron for durability or forged aluminum for weight reduction.

• Cast iron knuckles: manufactured using sand casting followed by machining for precise mounting surfaces.

• Aluminum knuckles: made through forging, which improves the strength-to-weight ratio, then CNC machined to final specifications.

Each component undergoes rigorous quality control and finishing operations, such as coating, heat treatment, and surface polishing, to ensure reliability and long service life in demanding automotive environments.

Considerations for Car Steering System Manufacturing

The steering system is critical for vehicle safety and handling. Therefore, strict compliance with dimensional, material, and performance standards is essential for each component.
